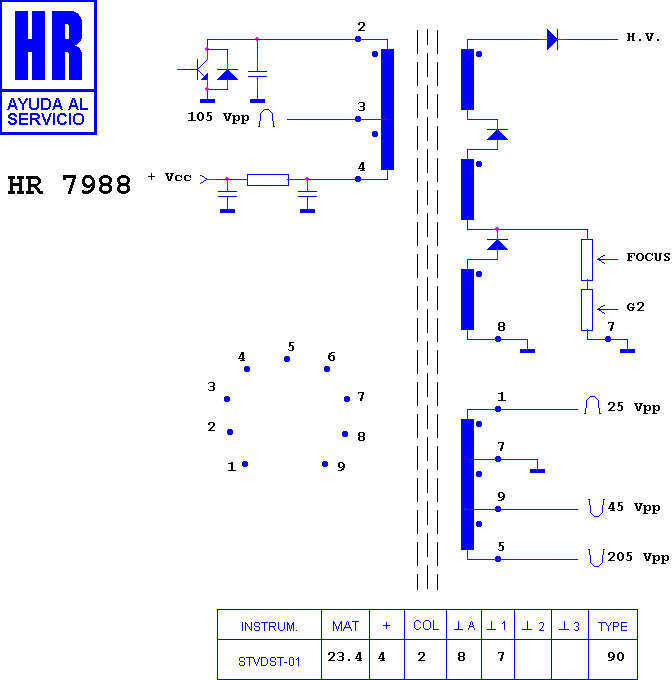

HR 7988

type ST · family 1VP2 · 23.4 kV maximum anode voltage · 90° deflection · 3 windings · 400 g

Manufacturer equivalents (4)

TLF 14533 F · TLF 14533 F2 · TLF 14533 FV2 · TVC/123

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7534 · HR 6274 · HR 8124 · HR 7630 · HR 8155 · HR 8574 · HR 8942 · HR 8896 · HR 7046 · HR 7116 · HR 8099 · HR 8328

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (18)

NATIONAL TC 20 C 1 · NATIONAL TC 20 D 1 · NATIONAL TC 20 R 1 · NATIONAL TC 212 S · NATIONAL TC 214 M · NATIONAL TC 214 S · NATIONAL TC 214 U · NATIONAL TC 215 N · PANASONIC - MATSUSHITA TC 20 C 1 · PANASONIC - MATSUSHITA TC 20 D 1 · PANASONIC - MATSUSHITA TC 20 R 1 · PANASONIC - MATSUSHITA TC 201 · PANASONIC - MATSUSHITA TC 212 S · PANASONIC - MATSUSHITA TC 214 M · PANASONIC - MATSUSHITA TC 214 MU · PANASONIC - MATSUSHITA TC 214 S · PANASONIC - MATSUSHITA TC 214 U · PANASONIC - MATSUSHITA TC 215 N
