HR 7534

type ST · family 1NP · 27 kV maximum anode voltage · 90° deflection · 2 windings · 260 g

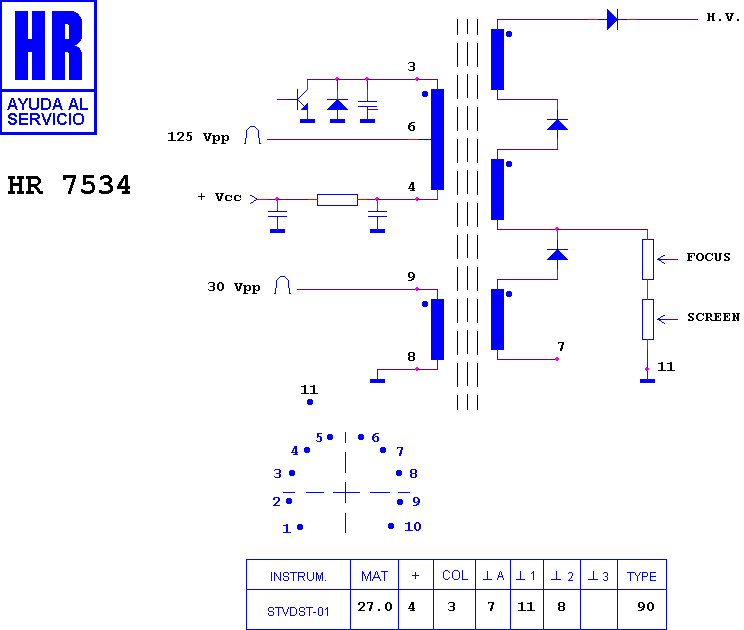

Schematic diagram for HR 7534
schematic

Manufacturer equivalents (15)

1142.0495 · 30013.00 · 30013.01 · 312213837851 · 37.848 · 37.851 · 37.854 · FAT30369 · HR 7534 · HR 7534-00 · HR 7534-01 · HR 7534-02 · KN30369 · PET 19-D2 · TR1194

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7988 · HR 7630 · HR 8816 · HR 6274 · HR 7228 · HR 6133 · HR 8124 · HR 8155 · HR 7046 · HR 7116 · HR 7115 · HR 7886

Fitted to (9)

ELBE 1411 · ELBE CHASIS E 15 · ELBE CHASIS E 15-14 · ELBE CHASIS E 17 · ELBE TVC 1410 · ELBE TVC 1411 · ELBE TVC 1420 · ELBE TVC 1420 TXT · KENNEDY 37 KE 015
