HR 8816

28.3 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

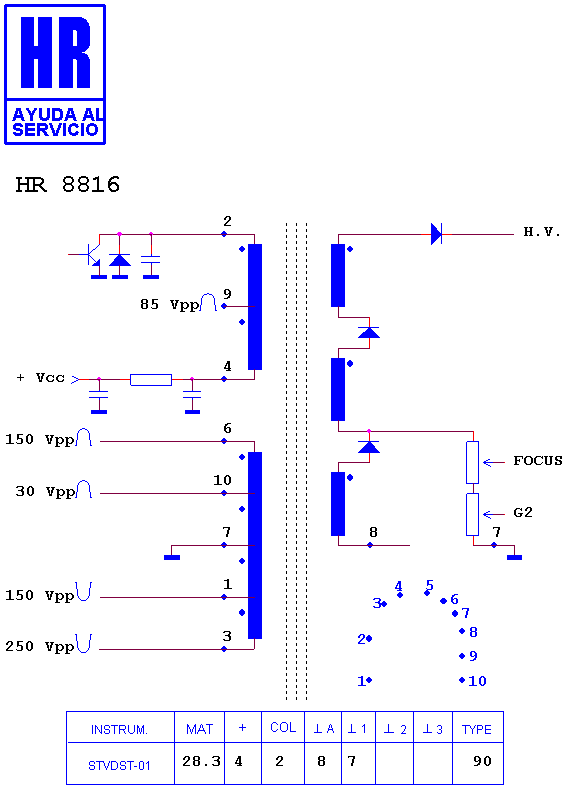

Schematic diagram for HR 8816
schematic (archived)

Manufacturer equivalents (3)

F0045PE · F0045PE-M · RTRNF0045PEZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7805 · HR 8328 · HR 7886 · HR 8446 · HR 7760 · HR 6052 · HR 7534 · HR 7804

Fitted to (7)

SHARP SV 2142 · SHARP SV 2142 SCN · SHARP SV 2145 G · SHARP SV 2145 S · SHARP SV 2145 S BK · SHARP SV 2145 SBK · SHARP XM 2146 G
