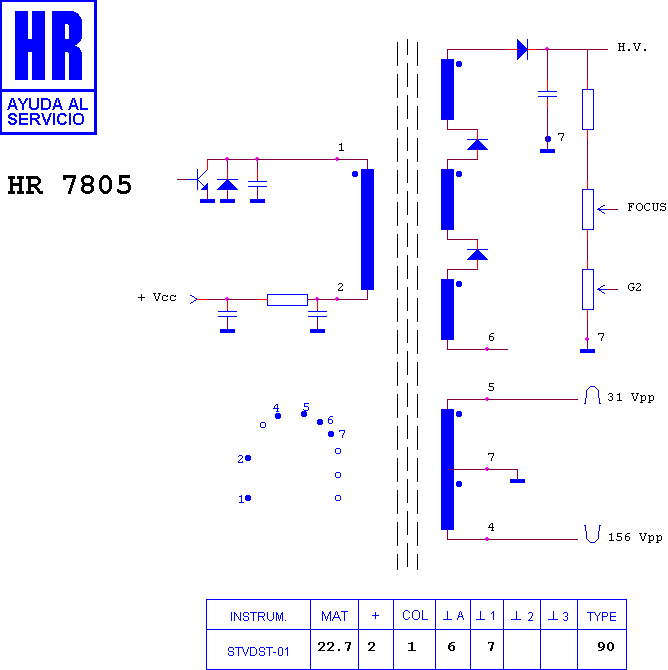

HR 7805

type ST · family 1WP1 · 22.7 kV maximum anode voltage · 90° deflection · 3 windings · 434 g

Manufacturer equivalents (1)

TLF 85686 B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8446 · HR 7804 · HR 8072 · HR 7760 · HR 6052 · HR 7886 · HR 8816 · HR 7534

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

PANASONIC - MATSUSHITA TX 901 AB
