HR 8072

type ST · family 1AP1 · 25.2 kV maximum anode voltage · 90° deflection · 5 windings · 370 g

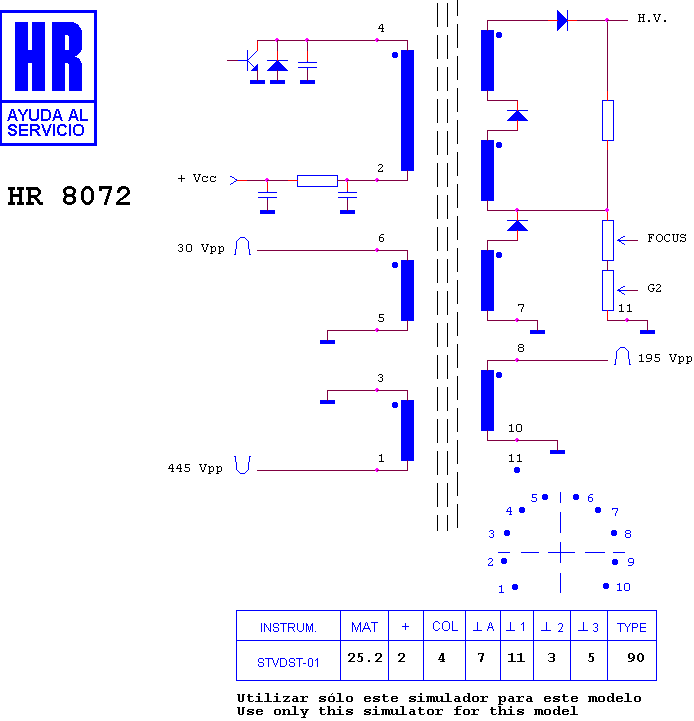

Schematic diagram for HR 8072
schematic

Manufacturer equivalents (4)

1172.0198 · 1192.0148 · 30PN0099 · 50 BN 0095

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7804 · HR 8478 · HR 6042 · HR 7342 · HR 8446 · HR 6191 · HR 7805

Fitted to (4)

KENT 26 C 12 A 22 B · KENT MONITOR · KME 26 C 12 A 22 B · KME MONITOR

Search this part in the full database
