HR 8446

type ST · family 1YP · 22.8 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

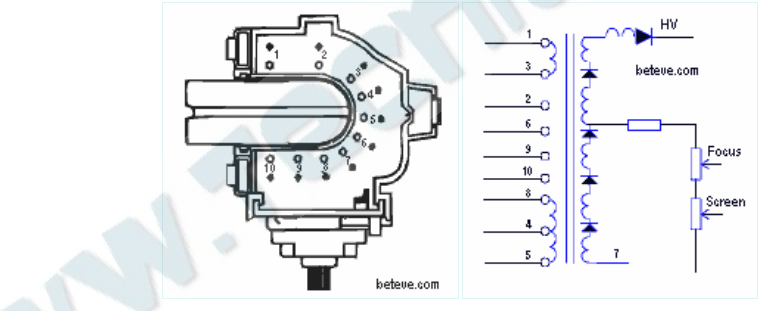

Schematic diagram for HR 8446
schematic

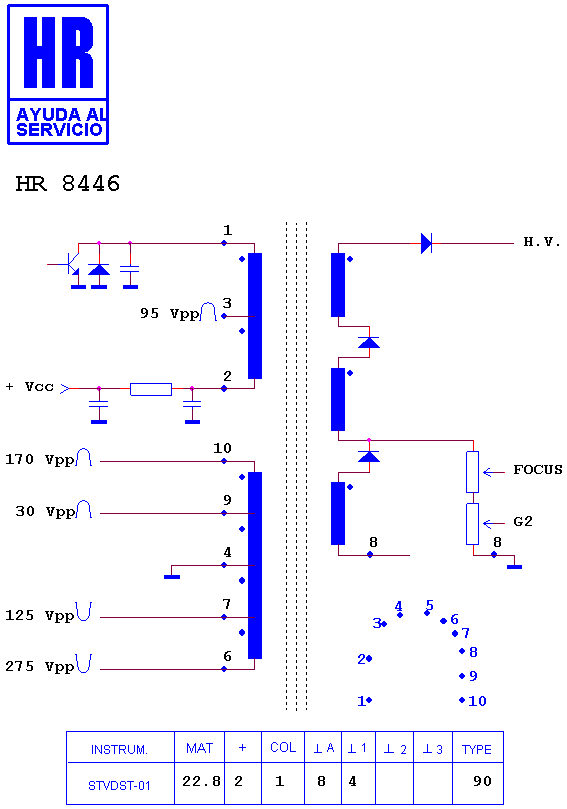

Schematic diagram for HR 8446
pin-out diagram
Schematic diagram for HR 8446
pin-out diagram

Manufacturer equivalents (8)

BSC24-01N40K · TFB 4122 AR · TFB 4122 BD · TFB 4122 CS · TFB 4122 DB · TFB4122ED · TFB4122XD · TFB4125CH

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7805 · HR 7886 · HR 8816 · HR 8072 · HR 8478 · HR 7760 · HR 6052 · HR 7804 · HR 8347

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

TOSHIBA CL 14 F 22
