HR 8347

type ST · family 1XP1 · 19.6 kV maximum anode voltage · 90° deflection · 5 windings · 290 g

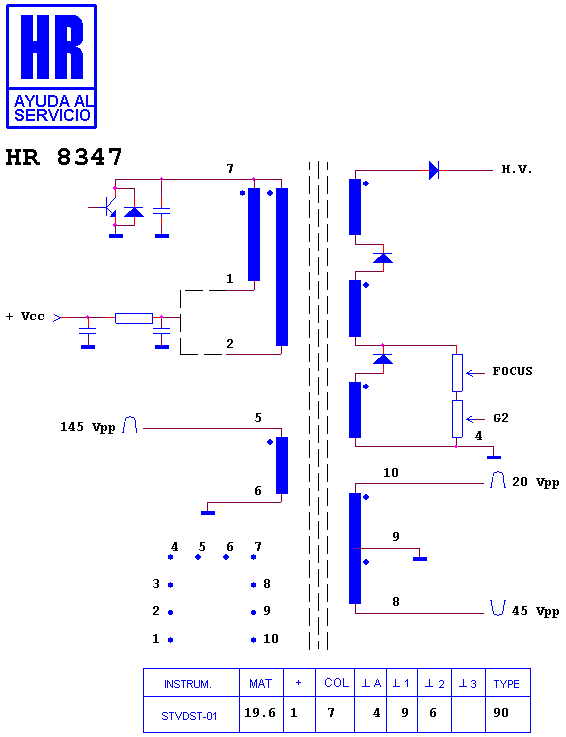

Schematic diagram for HR 8347
schematic

Manufacturer equivalents (6)

AC30053 · FD 0181 · FD 181 · FD0109 · FD109 · FD118

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7804 · HR 6052 · HR 8446 · HR 7760

Fitted to (4)

SANYO CLP 2127 · SANYO CLP 2128 · SANYO CTP 2127 · SANYO CTP 2128
