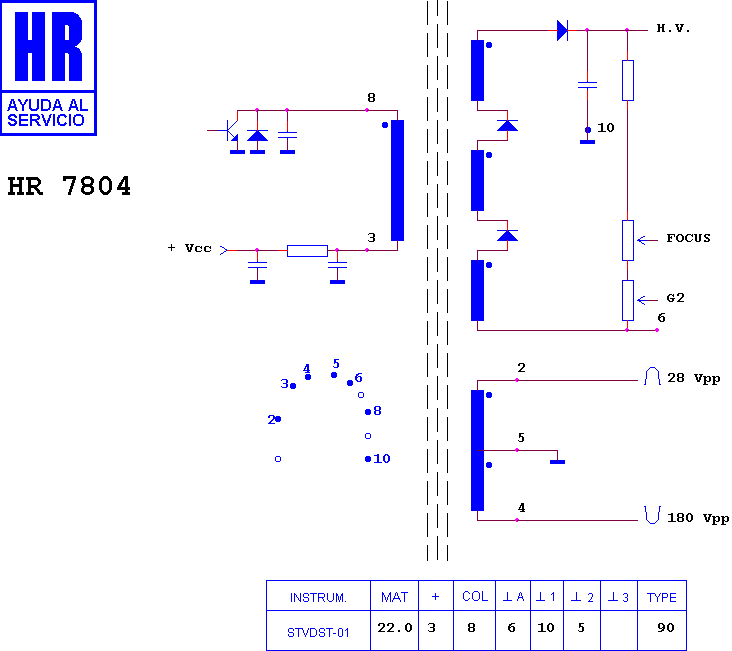

HR 7804

type ST · family 1WP1 · 22 kV maximum anode voltage · 90° deflection · 3 windings · 448 g

Manufacturer equivalents (3)

TLF 85673 B · TLF85670 · TLF85670B

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8072 · HR 8478 · HR 8446 · HR 7805 · HR 8816 · HR 6052 · HR 7760 · HR 8347

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
