HR 46256

26.8 kV maximum anode voltage · L° deflection · 3 windings · 444 g

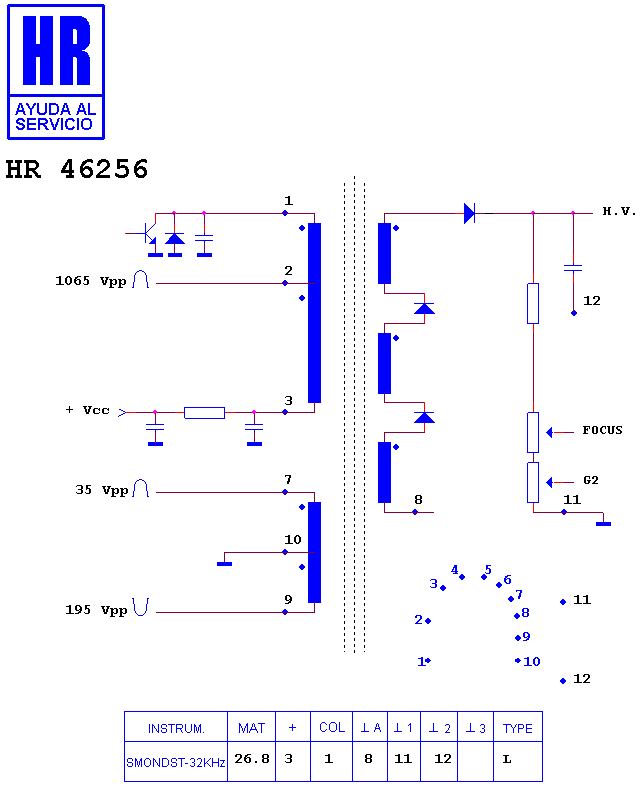

Schematic diagram for HR 46256
schematic (archived)

Manufacturer equivalents (3)

2385206300 · FEA656 · FEA656C

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6542 · HR 46222 · HR 46237 · HR 46246 · HR 46214 · HR 46251 · HR 7658 · HR 46198 · HR 46171 · HR 46186 · HR 7698 · HR 46205

Fitted to (4)

JEAN J 02 A · JEAN JD 205 A · JEAN MONITOR · JEAN MONITOR
