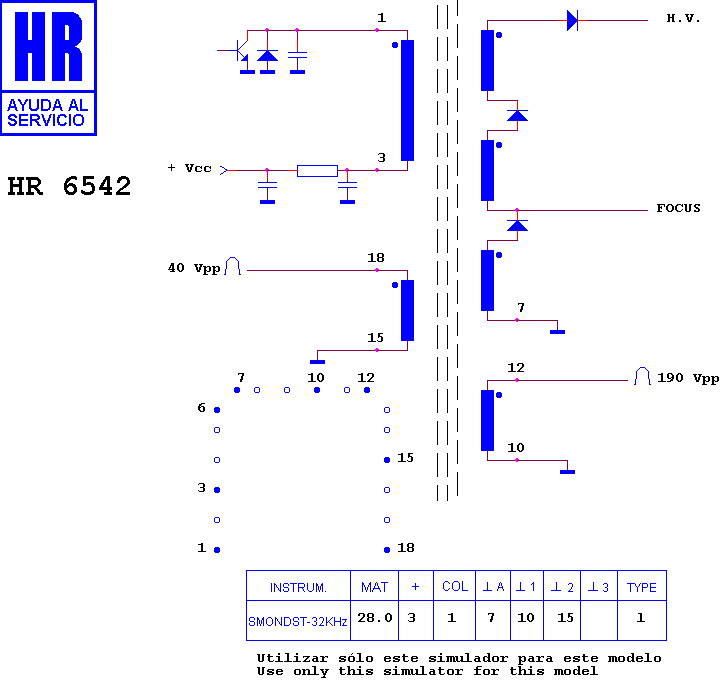

HR 6542

type SM · family 1PS · 28 kV maximum anode voltage · L° deflection · 4 windings · 576 g

Manufacturer equivalents (11)

0036 2002 0002 · 0036 2002 0003 · 0036 2003 0007 · 362002-0002 · 362002-0003 · 362002-2 · 362002-3 · 362003-0007 · 362003-7 · 4835 140 67016 · 4835 148 87145

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46256 · HR 46177 · HR 46214 · HR 46205 · HR 7658 · HR 46198 · HR 46246 · HR 46237 · HR 46251 · HR 7698

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 1660 — EHT anode lead

Fitted to (5)

MAGNAVOX CHASIS PTV 300 · MAGNAVOX CHASIS PTV 310 · MAGNAVOX RH 8535 · PHILIPS CHASIS PTV 300 · PHILIPS CHASIS PTV 310
