HR 46177

type SM · family 1WP1 · 30.6 kV maximum anode voltage · L° deflection · 4 windings · 444 g

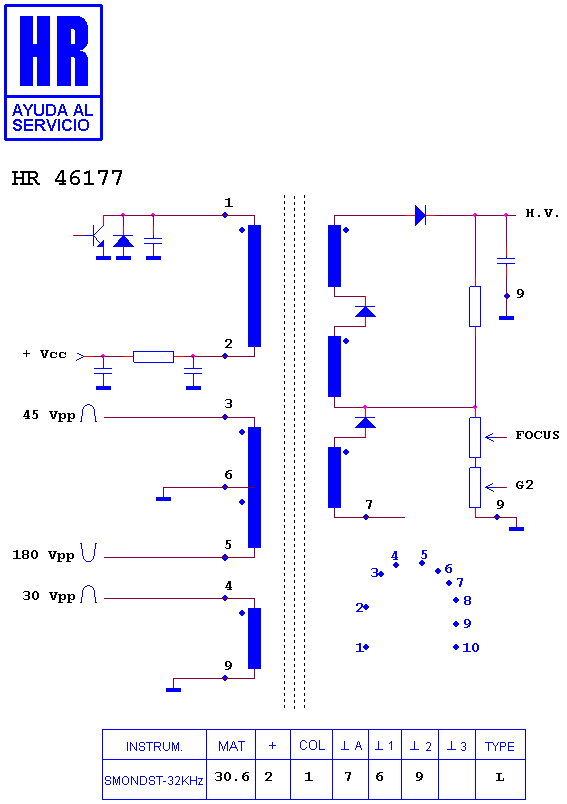

Schematic diagram for HR 46177
schematic

Manufacturer equivalents (4)

391023A · 39L1023AZ · 6174 Z 1017 H · ETF39L1023AZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46178 · HR 7698 · HR 46205 · HR 6542 · HR 7936 · HR 6540

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (8)

APP IMAC 350 · APP IMAC 450 · APP M 5521 · APP MONITOR · MACINTOSH IMAC 350 · MACINTOSH IMAC 450 · MACINTOSH M 5521 · MACINTOSH MONITOR
