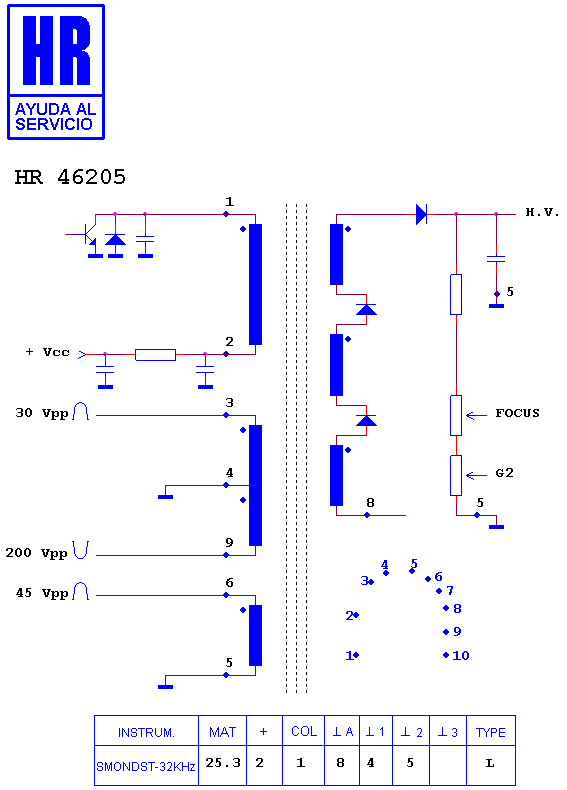

HR 46205

type SM · family 1WP1 · 25.3 kV maximum anode voltage · L° deflection · 4 windings · 444 g

Manufacturer equivalents (4)

IP 14087 · KFS 61513 · KFS 61513 A · KFS 61513 C

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46178 · HR 46177 · HR 46237 · HR 7698 · HR 46256 · HR 46214 · HR 6542 · HR 7658

Fitted to (12)

FIVE STAR FS 4960 NE · FIVE STAR FSD 4960 NE · FIVE STAR MONITOR · FIVE STAR SC 4 · KDS-KOREA DATA SYSTEMS MONITOR · KDS-KOREA DATA SYSTEMS VS 4 D · KDS-KOREA DATA SYSTEMS VS 56 · ORCHESTRA HORN II · ORCHESTRA MONITOR · VITEC 1455 · VITEC MONITOR · VITEC SC 4
