HR 46178

type SM · family 1WD · 29.3 kV maximum anode voltage · L° deflection · 3 windings · 474 g

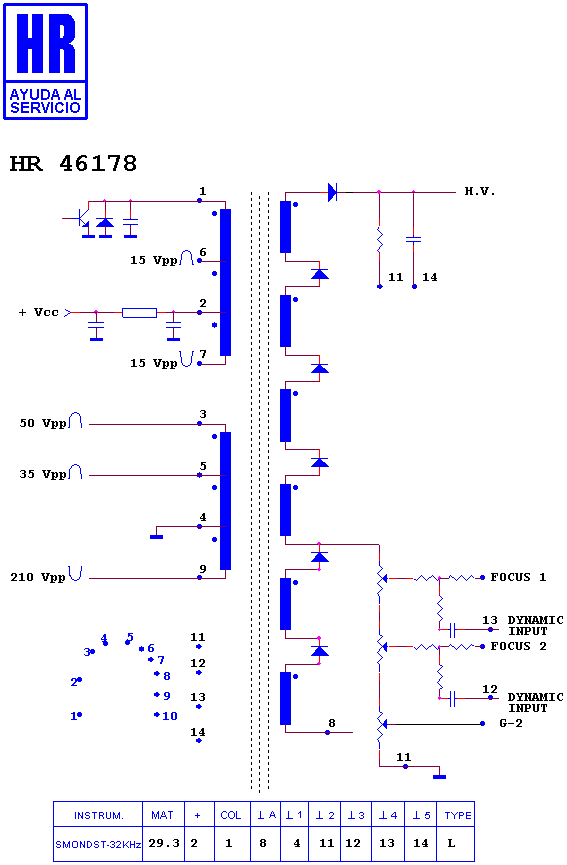

Schematic diagram for HR 46178
schematic

Manufacturer equivalents (5)

19-70052-001 · 19-70052-011 · 6174Z1003B · DNF-FN1545 · FN1545

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46177 · HR 46205 · HR 46254 · HR 6607 · HR 46214

Notes

ALWAYS THE COLOUR CABLE COINCIDENT WITH THE ORIGINAL; MATCHES THE SAME COLOUR CABLE IN THE HR.

Fitted to (18)

ACE 1772 IE · ACE 7276 E · ACE 7277 C · ACE 7277 E · ACE 77 I · ACE 77 S · ACE ASPIRE 77 S · ACE MD 1772 IE · ACE MONITOR · ALK 17721 E · ALK MONITOR · IBM 2237 · IBM 2237-24 N · IBM MONITOR · LIFETECH LT 1772 IE · LIFETECH MONITOR · MEDION MD 1772 IE · MEDION MONITOR
