HR 7698

type SM · family 1WP1 · 25.2 kV maximum anode voltage · L° deflection · 3 windings · 474 g

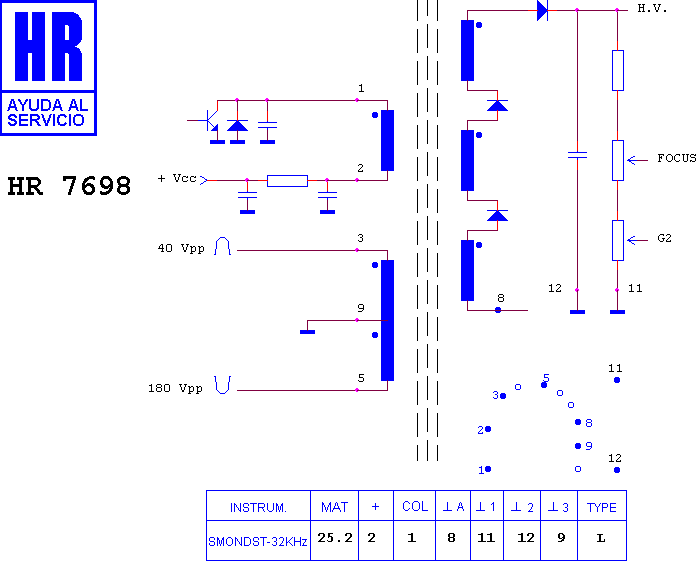

Schematic diagram for HR 7698
schematic

Manufacturer equivalents (16)

003121101 · 3122 138 38880 · 3122 138 38881 · 3122 138 38882 · 3122 138 38883 · 3122 138 38884 · 3138 138 38880 · 38880 · 38881 · 38882 · 38883 · 38884 · 38885 · AT 2090/08 · LZ 174 A 220 T · MAT33196

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46205 · HR 46177 · HR 46237 · HR 46251 · HR 46214 · HR 6542 · HR 46256 · HR 6540 · HR 7658

Fitted to (6)

ESCOM EM 1497 · ESCOM MONITOR · PHILIPS EM 141 LA · PHILIPS MONITOR · TYSTAR 14" 31.5 KHZ · TYSTAR MONITOR
