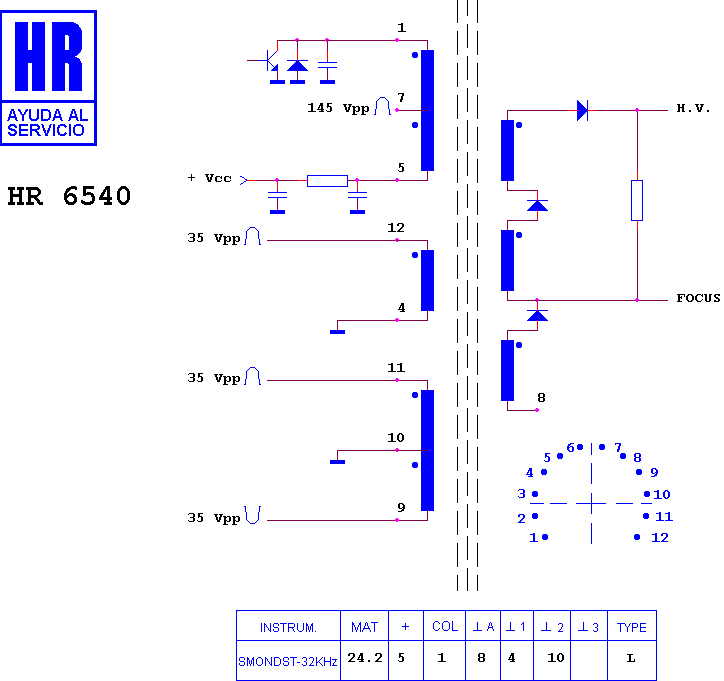

HR 6540

type SM · family 1BS1 · 24.2 kV maximum anode voltage · L° deflection · 4 windings · 390 g

Manufacturer equivalents (1)

HR 6540-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7698 · HR 46214 · HR 46230 · HR 7936 · HR 46177 · HR 46180 · HR 46266
