HR 46237

27.3 kV maximum anode voltage · L° deflection · 4 windings · 444 g

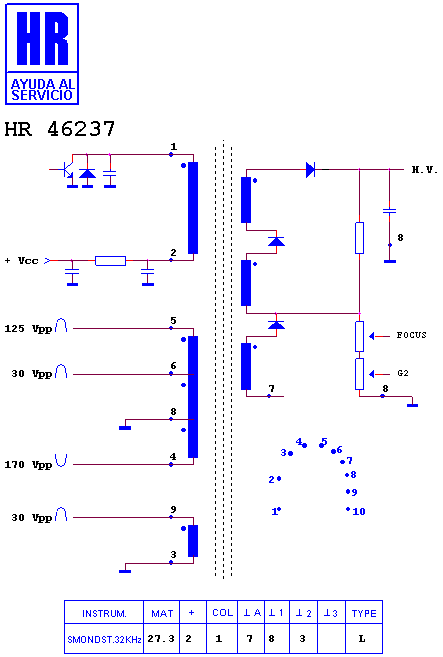

Schematic diagram for HR 46237
schematic (archived)

Manufacturer equivalents (5)

79A361-1 · 79A361A · BSC25M0A8N · CT8145 · E94056-F801

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46251 · HR 46198 · HR 46171 · HR 7698 · HR 46205 · HR 6542 · HR 46222 · HR 46256 · HR 7658 · HR 8165 · HR 46246 · HR 46214

Fitted to (4)

AOC CM 335 · AOC CMLB 335 · AOC MONITOR · AOC MONITOR

Search this part in the full database
