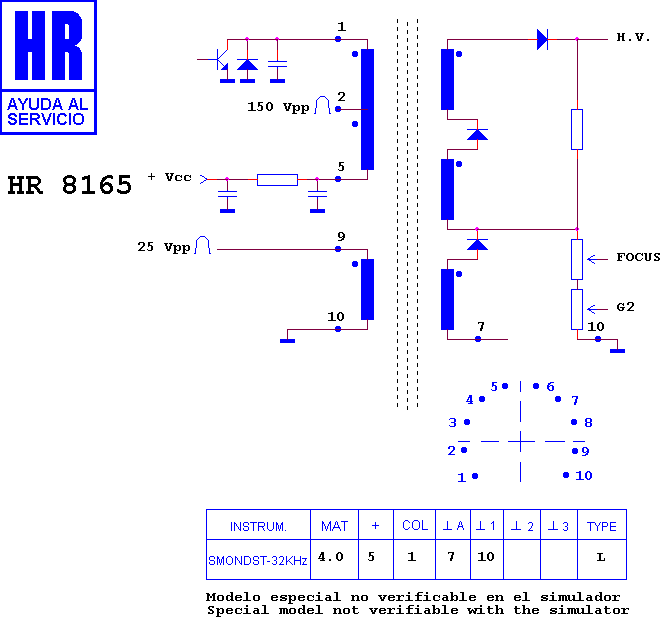

HR 8165

type SM · family 1AP1 · 4 kV maximum anode voltage · L° deflection · 3 windings · 390 g

Manufacturer equivalents (7)

003311127 · 29201.465.11 · FAT 30431 · KN 30431 · M 12-20 · RO 126 · TR 139

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46237 · HR 7658 · HR 7804 · HR 46222

Fitted to (2)

GRUNDIG CHASIS CUC 4200 · GRUNDIG CHASIS CUC 5200
