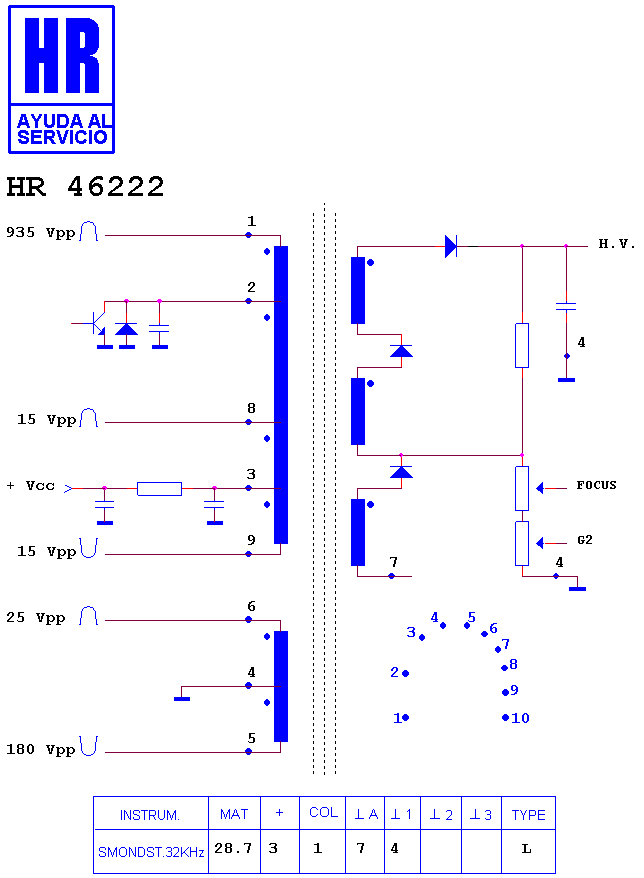

HR 46222

type SM · family 1WP1 · 28.7 kV maximum anode voltage · L° deflection · 3 windings · 444 g

Manufacturer equivalents (11)

39 L 2024 AZ · 392024 A · 6174 Z 2004 C · CF 0960 · CT 8388 · ETF 39 L 2024 AZ · FEA477 · HH 000005 · IP 14111 · LCE CF 0960 · LE 5 B 40-1

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46256 · HR 7804 · HR 46189 · HR 46171 · HR 46198 · HR 46246 · HR 7658 · HR 46237 · HR 8165

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (20)

DIGITAL E 1570-2 · DIGITAL MONITOR · FUJI 515 ICL · FUJI MONITOR · GVC FM 1057 · GVC MONITOR · HANTER M 1750 · HANTER MONITOR · INVEST M 1568 E · INVEST M 1568 P · INVEST MONITOR · KSEI C 578 D · KSEI MONITOR · MAXTECH HL 13 G · MAXTECH LOW RADIATION · MAXTECH MONITOR · PACKARD BELL 2020 · PACKARD BELL MONITOR · RELISYS MONITOR · RELISYS TE 554
