HR 8478

type ST · family 1NP1 · 22.8 kV maximum anode voltage · 90° deflection · 4 windings · 280 g

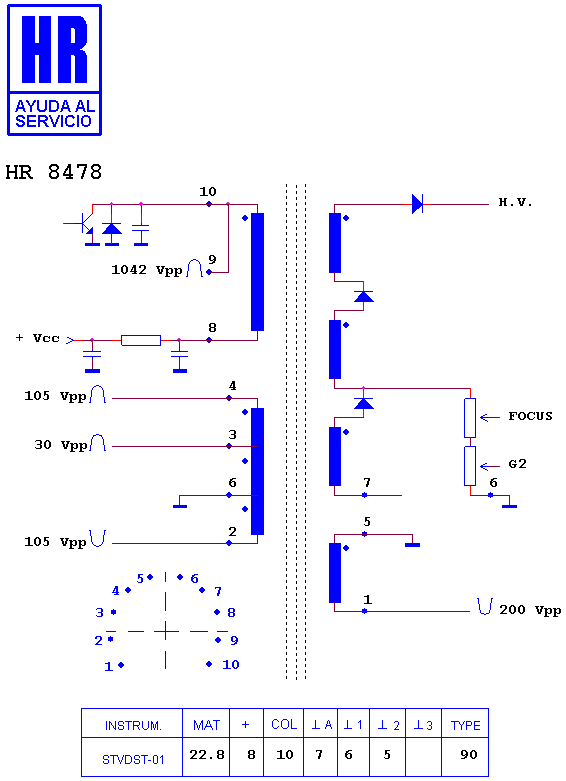

Schematic diagram for HR 8478
schematic

Manufacturer equivalents (2)

2 G 25026-B3F · 217319

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8072 · HR 6042 · HR 8446 · HR 7804 · HR 7342 · HR 7528 · HR 6191 · HR 7533 · HR 7540

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (11)

RCA CTC 175 · RCA CTC 175 A · RCA F 20201 WNFA 1 · RCA F 20201 WNJX 1 · RCA F 20201 WNTX 1 · RCA F 20203 BKTX 1 · RCA F 20301 GF · RCA F 20301 SFFA 1 · RCA F 20301 SFJX 1 · RCA F 20601 SEFA 1 · RCA F 20601 SEJX 1
