HR 7528

type ST · family 1NP · 19.9 kV maximum anode voltage · 90° deflection · 4 windings · 255 g

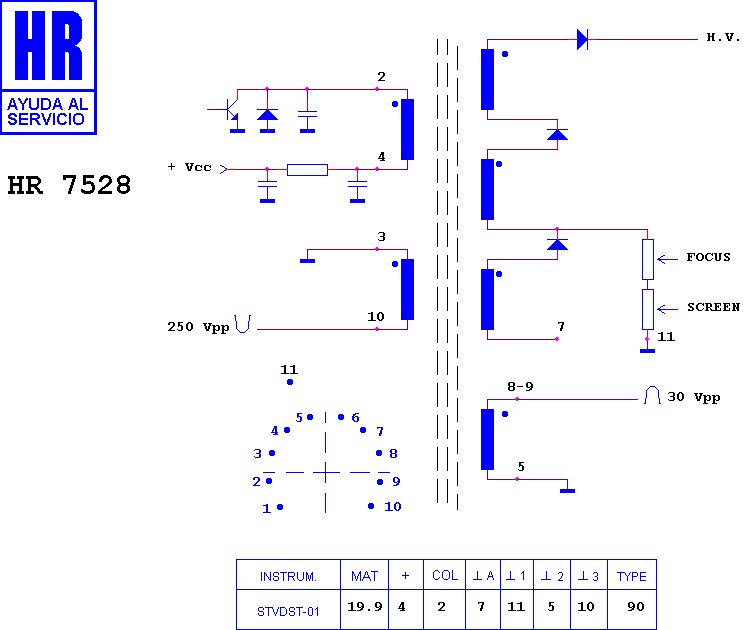

Schematic diagram for HR 7528
schematic

Manufacturer equivalents (4)

094-01041/0.2 · 94-01041/0.2 · HR 7528 · HR 7528-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8881 · HR 6042 · HR 8414 · HR 8478 · HR 7533 · HR 7540 · HR 7152 · HR 7201

Fitted to (1)

SANYO TVC 20/4 RC
