HR 7201

type ST · family 1AP1 · 16.5 kV maximum anode voltage · 90° deflection · 4 windings · 370 g

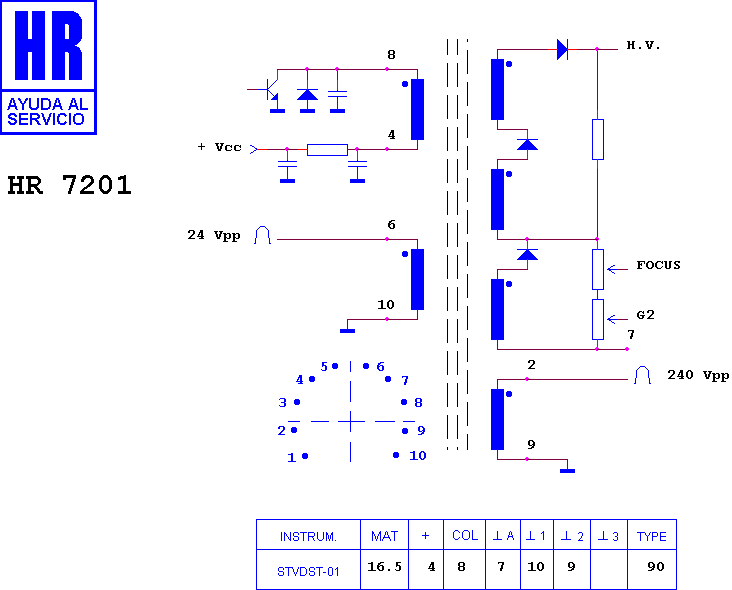

Schematic diagram for HR 7201
schematic

Manufacturer equivalents (5)

1105.0847 · 46 200 1040 · 51324200 · 52 399 0672 · ME/6242-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8414 · HR 8881 · HR 7533 · HR 7540 · HR 7528 · HR 7152

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (6)

BRION VEGA 15" - 17" · BRION VEGA BEST · BRION VEGA LOTUS · BRION VEGA LOTUS 17 MONITOR · BRION VEGA TOP 15 · BRION VEGA TOP 15 MONITOR
