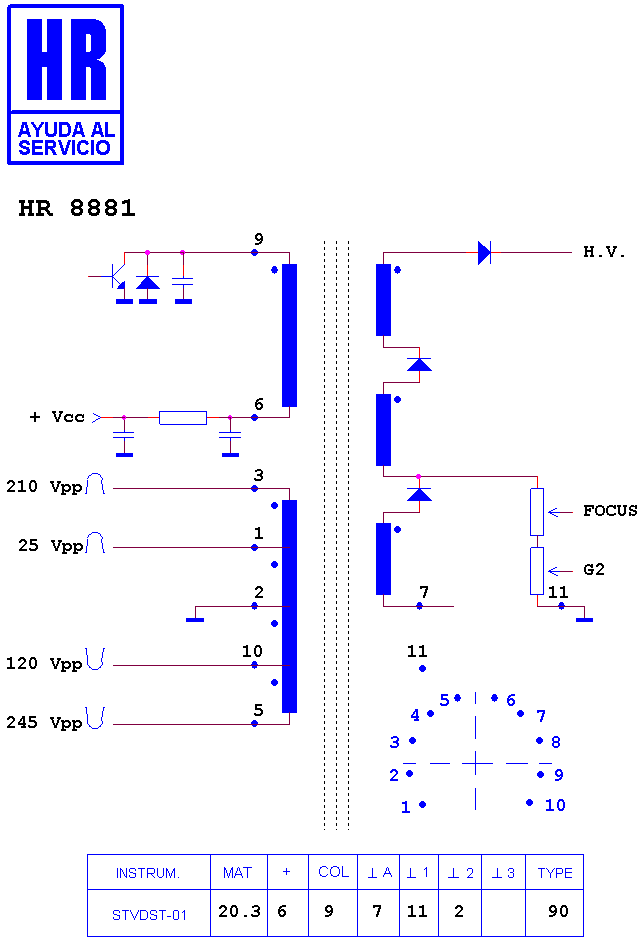

HR 8881

type ST · family 1NP1 · 20.3 kV maximum anode voltage · 90° deflection · 3 windings · 264 g

Manufacturer equivalents (13)

003071090 · 040.007EL1 · 040.007TR1 · 058.413 EL 4 · 058.413 R-E 4 · 058.413 TR 4 · 1142.1818 · 1142.1818 A · 1142.1818 B · 1142.1836 · 1142.1836A · 3071090 · HR 8881

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7540 · HR 7528 · HR 7201 · HR 7533 · HR 8414 · HR 7152

Fitted to (19)

BEKO - BEKOTEKNIK 14 B 9 T 61 TXS · BEKO - BEKOTEKNIK CHASIS 12.1 14" · BEKO - BEKOTEKNIK CHASIS 12.6 14" · BEKO - BEKOTEKNIK CHASIS 12.8 90§ · CLATRONIC CHASIS 12.8 90§ · CLATRONIC CTV 516 VT · LG - GOLDSTAR CB 14 F 80 X · LG - GOLDSTAR CB 14 F 84 SX · LG - GOLDSTAR CHASIS 12.1 14" · LG - GOLDSTAR CHASIS 12.6 14" · LG - GOLDSTAR CHASIS 12.7 14" · LG - GOLDSTAR CHASIS 12.8 90§ · TESSLA CHASIS 12.1 14" · TESSLA CHASIS 12.6 14" · TRILUX CHASIS 12.8 90§ · TRILUX M 3741 TM · UNITED CHASIS 12.8 90§ · UNITED UTV 14 X 30 · UNITED UTV 20 X 30
