HR 6191

type ST · family 1BS2 · 19.9 kV maximum anode voltage · 90° deflection · 3 windings · 366 g

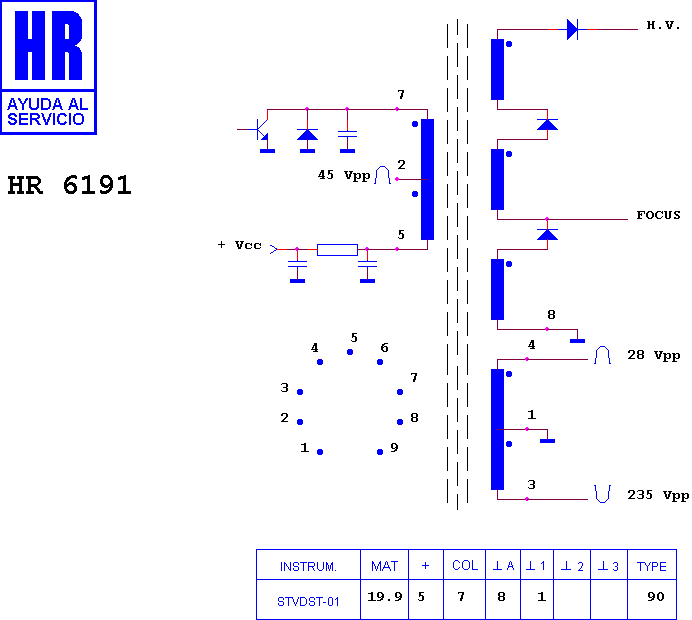

Schematic diagram for HR 6191
schematic

Manufacturer equivalents (14)

154 016 A · 154 016 B · 154 019 A · 154 026 A · 154 030 A · 154 033 A · 154 041 A · 154019C · 154023A · 154034A · FAT30767 · MSH-S362G · TLF 69908 · TLF69907

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 6470 · HR 7342 · HR 8072 · HR 8478 · HR 7266 · HR 7691 · HR 7568
