HR 7568

type ST · family 1NP · 17.2 kV maximum anode voltage · 90° deflection · 3 windings · 260 g

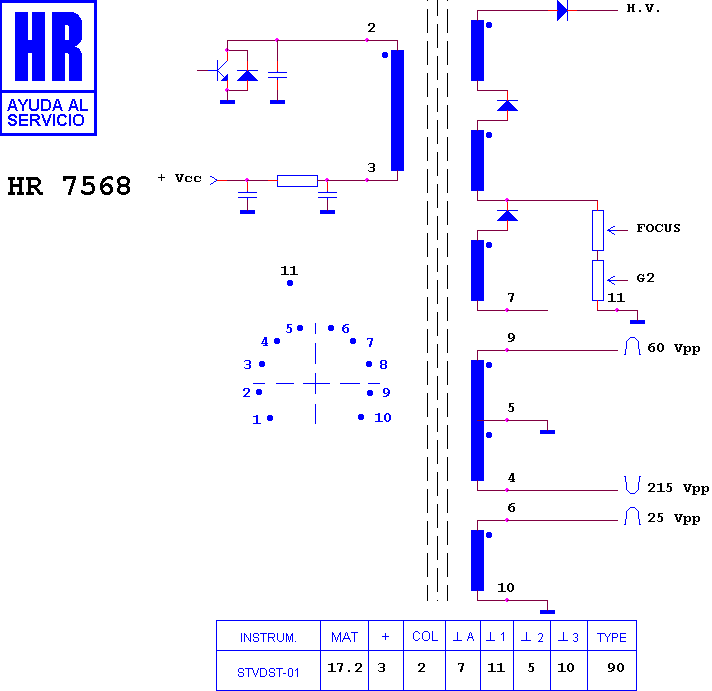

Schematic diagram for HR 7568
schematic

Manufacturer equivalents (4)

1142.0345 · T 01930 I 04 · T 01930104 · TO 1930 I 04

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7266 · HR 8187 · HR 6501 · HR 7492 · HR 7691 · HR 8920 · HR 7543 · HR 7177 · HR 7502 · HR 7211 · HR 8785 · HR 8276

Fitted to (9)

ALBA CTV 743 · BUSH-MURPHY-RANK 2914 · CROWN CTV B 50 · CROWN DTV 9254 · CROWN DVR 9254 · MICROVITEC TVC SERIES 11 · MICROVITEC TVC SERIES 3 · NEC N 4830 · NEC N 4870
