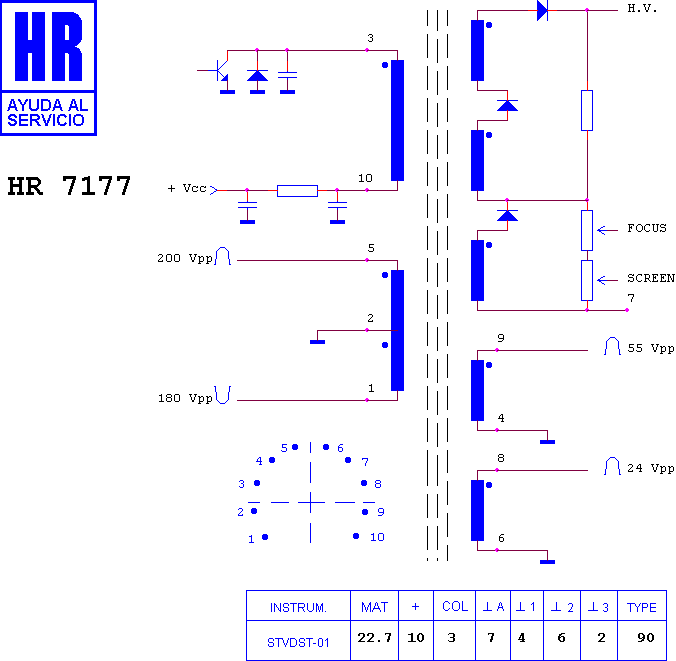

HR 7177

type ST · family 1AP2 · 22.7 kV maximum anode voltage · 90° deflection · 4 windings · 290 g

Manufacturer equivalents (4)

094-01060/0.8 · 94-01060/0.8 · HR 7177-01 · HR 7177-02

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7543 · HR 7590 · HR 8920 · HR 7446 · HR 80023 · HR 6501 · HR 7292 · HR 7568 · HR 7237 · HR 7973 · HR 7210 · HR 7672

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (1)

SANYO CHASIS EC 1 90§ TUBO PHILIPS
