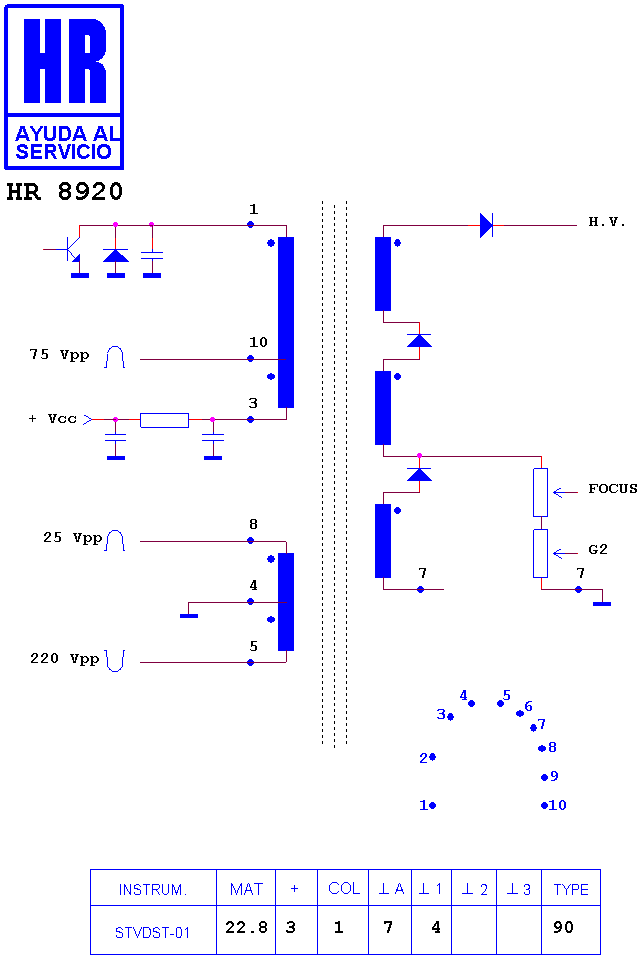

HR 8920

22.8 kV maximum anode voltage · 90° deflection · 3 windings · 256 g

Manufacturer equivalents (1)

BSC24-3202

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8276 · HR 80023 · HR 8298 · HR 7211 · HR 7098 · HR 7492 · HR 7663 · HR 7278 · HR 7590 · HR 8428 · HR 6250 · HR 7355

Fitted to (4)

A I ATS 37 · A I TVS 20 · BAUER C 3718 · SVA C 3718

Search this part in the full database
