HR 8298

22.8 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

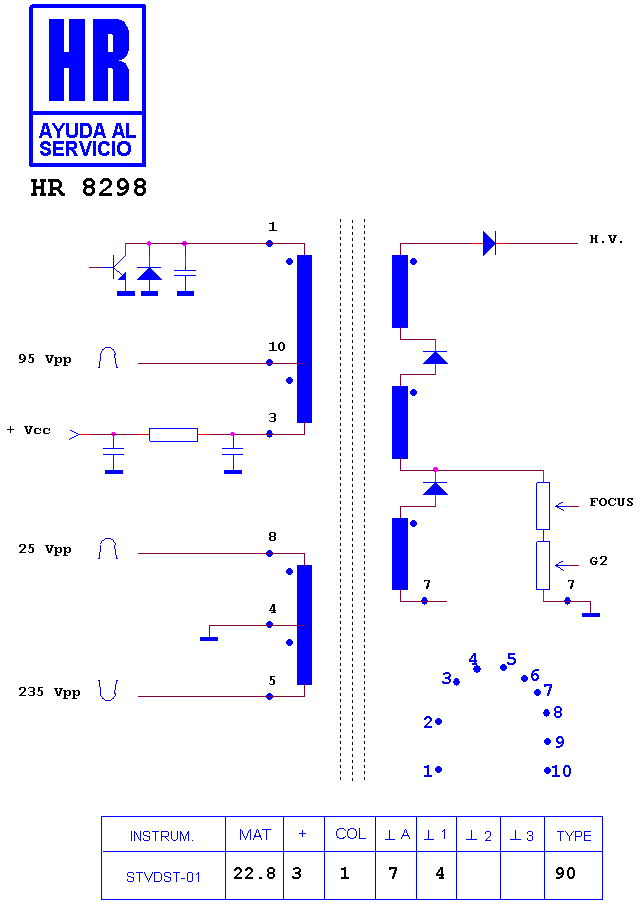

Schematic diagram for HR 8298
schematic (archived)

Manufacturer equivalents (1)

BSC24-3203

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80023 · HR 8276 · HR 8920 · HR 7211 · HR 8190 · HR 7372 · HR 7098 · HR 7663 · HR 7501 · HR 5644 · HR 7278 · HR 7446

Fitted to (7)

A I TVS 20 · BAUER C 511 · BAUER C 5118 · BAUER C 545 · SVA C 511 · SVA C 5118 · SVA C 545

Search this part in the full database
