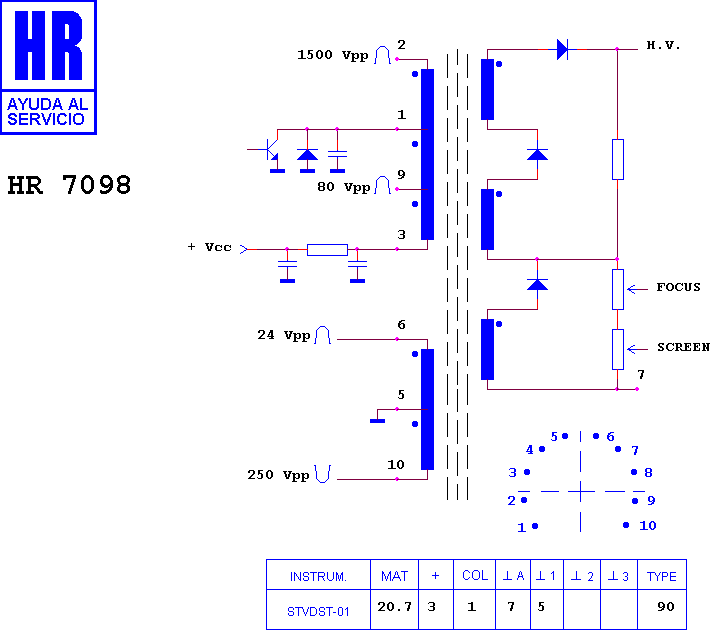

HR 7098

20.7 kV maximum anode voltage · 90° deflection · 3 windings · 320 g

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8920 · HR 7211 · HR 8298 · HR 8276 · HR 8190 · HR 7663 · HR 7492 · HR 8785 · HR 8187 · HR 6184 · HR 8396 · HR 5644

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
