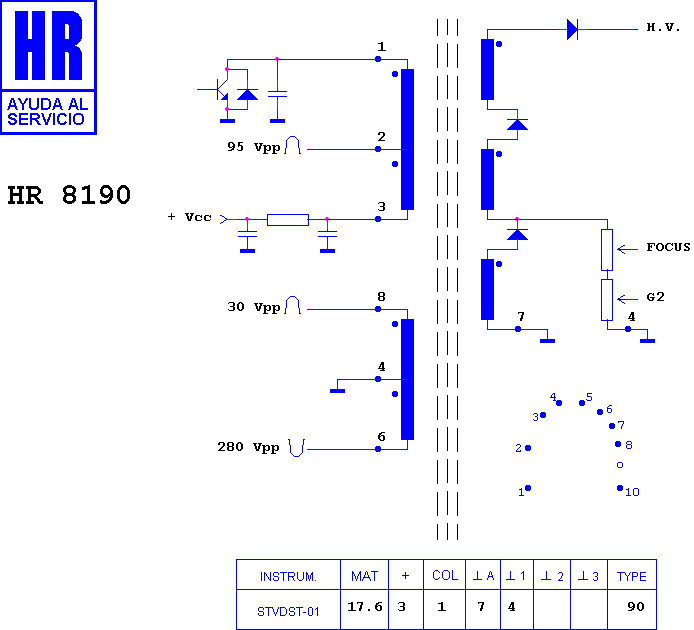

HR 8190

type ST · family 1XP1 · 17.6 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

Manufacturer equivalents (4)

003141008 · BSC 22-2952 · RO 240 · TR 240

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7098 · HR 8298 · HR 8276 · HR 8428 · HR 8785 · HR 7663 · HR 7492 · HR 8396 · HR 7507 · HR 7278 · HR 7986 · HR 8187

Notes

COD-038 THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (10)

AIKO ATV 3414 · FLASH TC 374 · MEGA M 9837 · MGA M 9837 · ORION COMBI 2630 · ORION TV/VIDEO COMBINATION 2630 · ROWA TC 374-2 PN · ROWA TC 374-2 PN (R) · TEMPEST SP 1 · TEMPEST SP 1400 R
