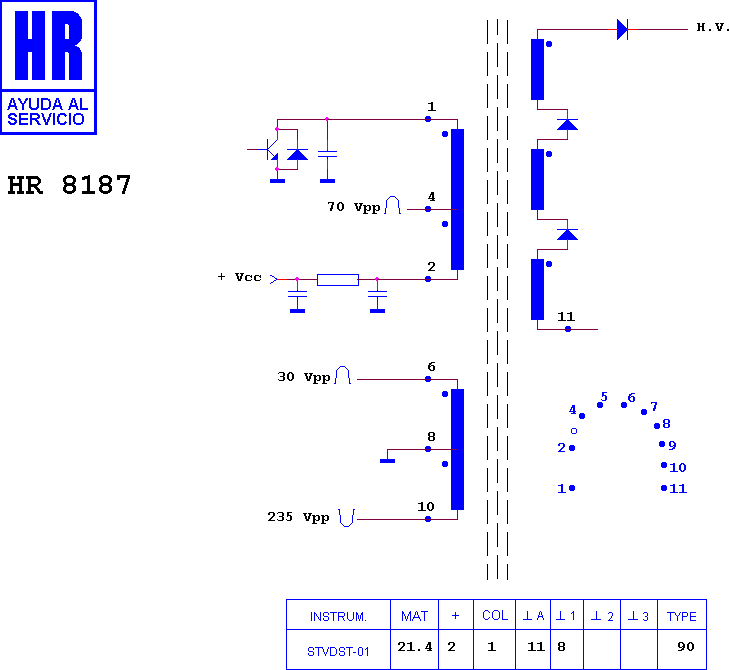

HR 8187

type ST · family 1SP1 · 21.4 kV maximum anode voltage · 90° deflection · 3 windings · 340 g

Manufacturer equivalents (10)

003140076 · 1-453-266-11 · 8-598-818-00 · 8-598-818-10 · NX 1900 · NX 1900/U · NX 1900/U2 · NX 1900/U2A4 · RO 904 · TR 904

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7492 · HR 7278 · HR 7973 · HR 7446 · HR 7663 · HR 8920 · HR 8276 · HR 80023 · HR 7517 · HR 7590 · HR 6501 · HR 7568

Accessories (2)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16524 — Focus control
• HR 16525 — Screen (G2) control

Fitted to (7)

SONY CHASIS BE 4 · SONY KV 14 M 1 D · SONY KV 14 M 1 E · SONY KV 14 T 1 A · SONY KV 14 T 1 D · SONY KV M 1450 B · SONY KV M 1450 E

Search this part in the full database
