HR 7517

type ST · family 1NP · 22.5 kV maximum anode voltage · 90° deflection · 3 windings · 256 g

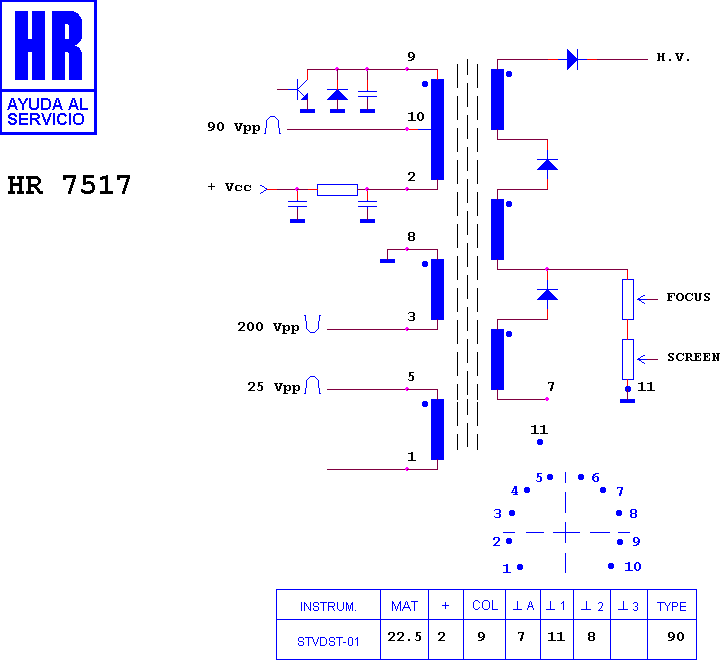

Schematic diagram for HR 7517
schematic

Manufacturer equivalents (13)

105337.50 · 1142.1735 · 30001.00 · 30006.00 · 30006.01 · 30006.02 · 32338.00 · 37.842 · 37.845 · 37.846 · 40309-38 · HR 7517-00 · HR 7517-01

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7501 · HR 7553 · HR 7555 · HR 7446 · HR 80023 · HR 7278 · HR 8298 · HR 6571 · HR 7920 · HR 7929 · HR 80060 · HR 8920

Fitted to (6)

ELBE CHASIS E 12-21 · ELBE CHASIS E 14 · ELBE TVC 2190 · ELBE TVC 2190 MD · ELBE TVC 2193 · ELBE TVC 2193 MD

Search this part in the full database
