HR 7920

type ST · family 1YP · 31.9 kV maximum anode voltage · 90° deflection · 4 windings · 370 g

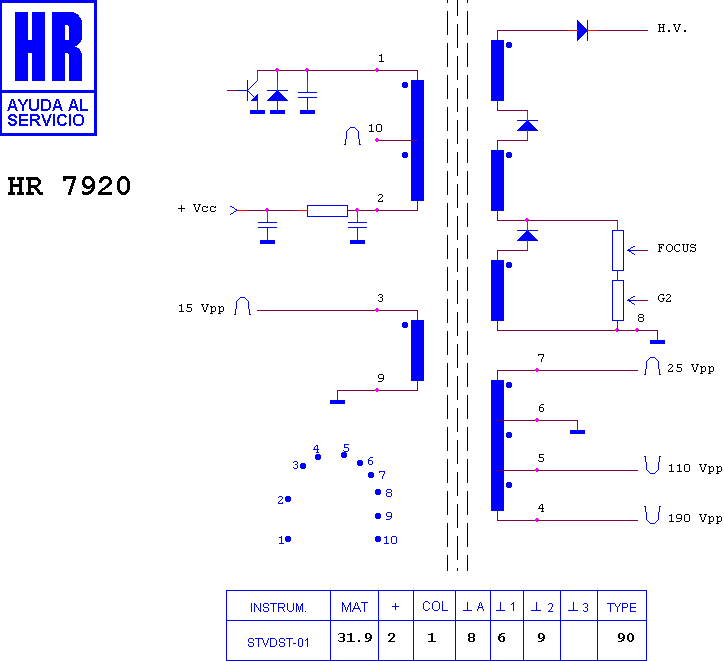

Schematic diagram for HR 7920
schematic

Manufacturer equivalents (4)

101-226003-01 · 101-226003-01 A · TLF 70177 · TLF 70177 A

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8536 · HR 7446 · HR 7973 · HR 7203 · HR 80060 · HR 6112 · HR 6571 · HR 7443 · HR 8899 · HR 7586 · HR 7412 · HR 7553

Fitted to (7)

AKAI CTK 280 · AKAI CTK 2868 AT · HCM ROYAL TV 6706 · MASUDA T 269 · ONWA K 3926 · ROYAL TV 6706 · SONWA CTV 26
