HR 7412

type ST · family 1SS1 · 20.3 kV maximum anode voltage · 90° deflection · 4 windings · 341 g

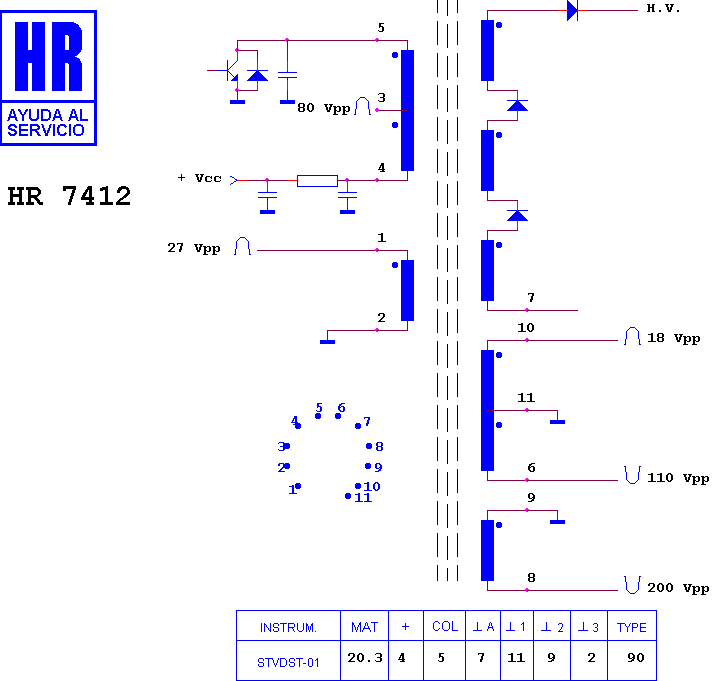

Schematic diagram for HR 7412
schematic

Manufacturer equivalents (6)

1-439-334-00 · 1-439-334-11 · 1-439-334-12 · 1-439-334-13 · 1-439-334-21 · 1-439-334-41

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7138 · HR 7512 · HR 7119 · HR 7011 · HR 6571 · HR 80060 · HR 7555 · HR 8394 · HR 8899 · HR 7553 · HR 7920 · HR 7947

Fitted to (6)

SONY KV 1970 R · SONY KV 1971 R · SONY KV 1975 R · SONY KV 1992 R · SONY KV 1993 R · SONY KV 2071 MX
