HR 8385

type SM · family 1RD · 26.4 kV maximum anode voltage · H° deflection · 3 windings · 474 g

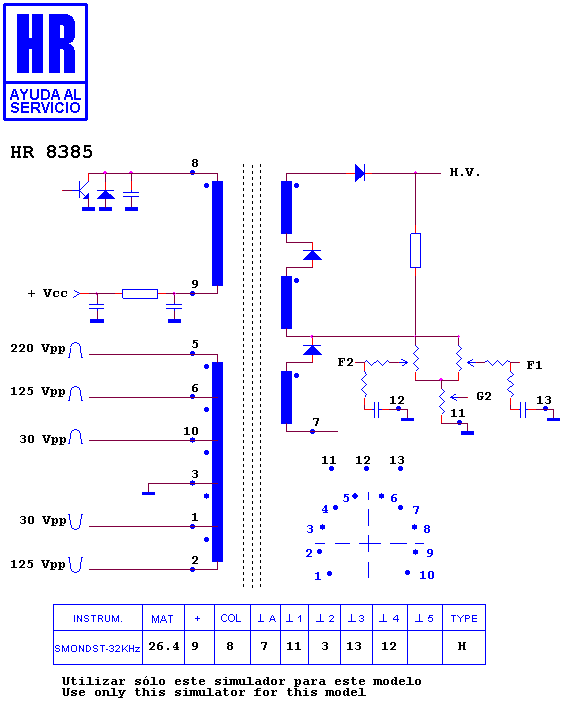

Schematic diagram for HR 8385
schematic

Manufacturer equivalents (2)

F 2092 BM · RTRNF2092BMZZ

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 46183 · HR 7139 · HR 46267 · HR 46167

Fitted to (2)

SHARP CHASIS GA 200 · SHARP CHASIS GA 200 (16:9)

Search this part in the full database
