HR 8899

27.3 kV maximum anode voltage · 90° deflection · 3 windings · 256 g

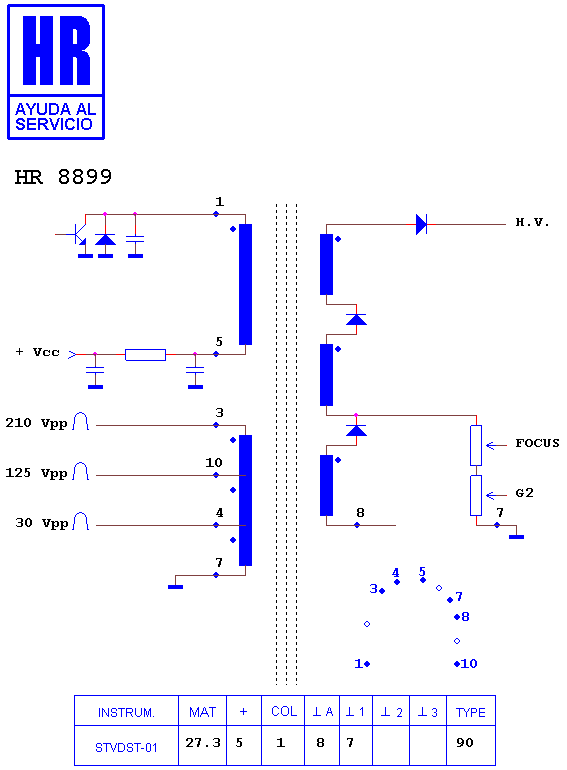

Schematic diagram for HR 8899
schematic (archived)

Manufacturer equivalents (18)

00018124 · 18124 · 996500013903 · 996500018124 · 996500029175 · BSC21-2016S · BSC23-2603 · BSC23-2603S · F07A.0005 · HR 8899 · JF0501-2418 · JF0501-3101 · JF0501-3101B · LTF00CPS2040 · LTF00CPS2054 · LTF00CPXB026 · LTF00CPXB039 · LTF00CPXB047

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 80060 · HR 7163 · HR 7920 · HR 7203 · HR 7446 · HR 7501 · HR 8760 · HR 8715 · HR 7555 · HR 6571 · HR 7412 · HR 6111

Fitted to (57)

FUNAI 6313 CD · FUNAI 6313 VC · FUNAI 6413 TC · FUNAI 6413 TD · FUNAI 6513 DD · FUNAI DCC 1303 · FUNAI EWC 1303 · FUNAI ST 413 B · FUNAI ST 413 C · FUNAI ST 413 D · FUNAI ST 6413 TC · PHILIPS 14 PV 111 · PHILIPS 14 PV 111/01 · PHILIPS 14 PV 111/07 · PHILIPS 14 PV 111/58 · PHILIPS 14 PV 112 · PHILIPS 14 PV 112/01 · PHILIPS 14 PV 120 · PHILIPS 14 PV 120/07 · PHILIPS 14 PV 125 · PHILIPS 14 PV 125/01 · PHILIPS 14 PV 125/07 · PHILIPS 14 PV 125/39 · PHILIPS 14 PV 125/58 · PHILIPS 14 PV 203 · PHILIPS 14 PV 203/01 · PHILIPS 14 PV 203/07 · PHILIPS 14 PV 203/39 · PHILIPS 14 PV 203/58 · PHILIPS 14 PV 225 · PHILIPS 14 PV 225/01 · PHILIPS 14 PV 225/07 · PHILIPS 14 PV 225/39 · PHILIPS 14 PV 225/58 · PHILIPS 14 PV 360 · PHILIPS 14 PV 360/01 · PHILIPS 14 PV 360/39 · PHILIPS 14 PV 374 · PHILIPS 14 PV 374/01 · PHILIPS 14 PV 374/39 · PHILIPS 14 PV 374/58 · PHILIPS 14 PV 375 · PHILIPS 14 PV 375/01 · PHILIPS 14 PV 375/07 · PHILIPS 14 PV 375/39 · PHILIPS 14 PV 422 · PHILIPS 14 PV 422/01 · PHILIPS 14 PV 422/07 · PHILIPS 14 PV 422/39 · PHILIPS 14 PV 422/58 · PHILIPS 14 PV 425 · PHILIPS 14 PV 425/07 · PHILIPS CHASIS MK 10 · PHILIPS CHASIS MK 12 · TELEVIDEO 14 V 225/01 · TELEVIDEO CHASIS MK 10 · TELEVIDEO CHASIS MK 12
