HR 80060

28.1 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

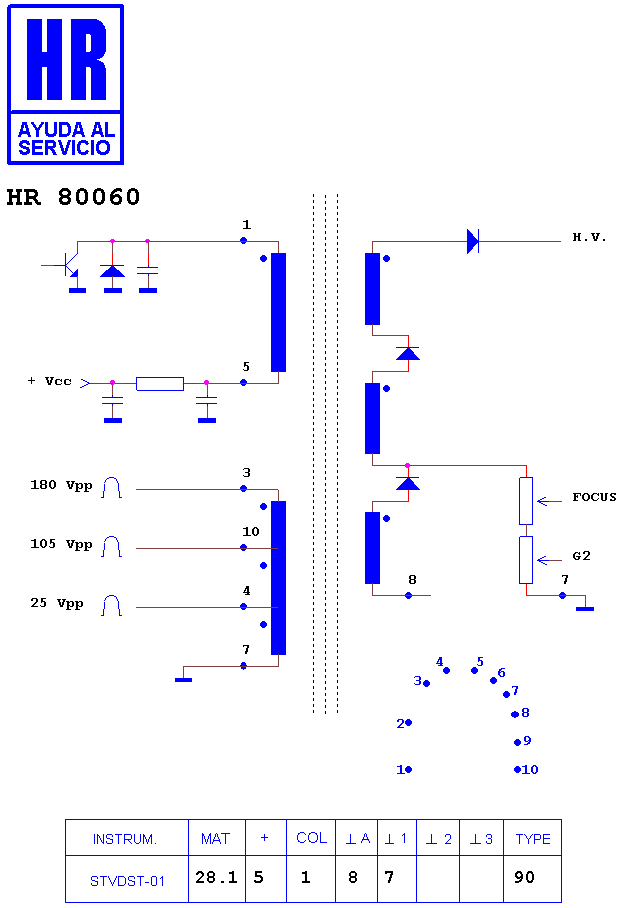

Schematic diagram for HR 80060
schematic (archived)

Manufacturer equivalents (9)

00018169 · 18169 · 996500018169 · BSC23-2639S · HR 80060 · JF0501-19198 · JF0501-19198A · LTF00CPS2058 · LTF00CPXB043

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8899 · HR 7163 · HR 7920 · HR 5708 · HR 7446 · HR 7203 · HR 7501 · HR 6571 · HR 7412 · HR 7555 · HR 7885 · HR 6112

Fitted to (9)

PHILIPS 21 PV 375 · PHILIPS 21 PV 375/01 · PHILIPS 21 PV 375/07 · PHILIPS 21 PV 375/39 · PHILIPS 21 PV 375/58 · PHILIPS 21 PV 385 · PHILIPS 21 PV 385/39 · PHILIPS 21 PW 375 · PHILIPS CHASIS MK 12
