HR 8377

type ST · family 1AP1 · 19.7 kV maximum anode voltage · 90° deflection · 3 windings · 400 g

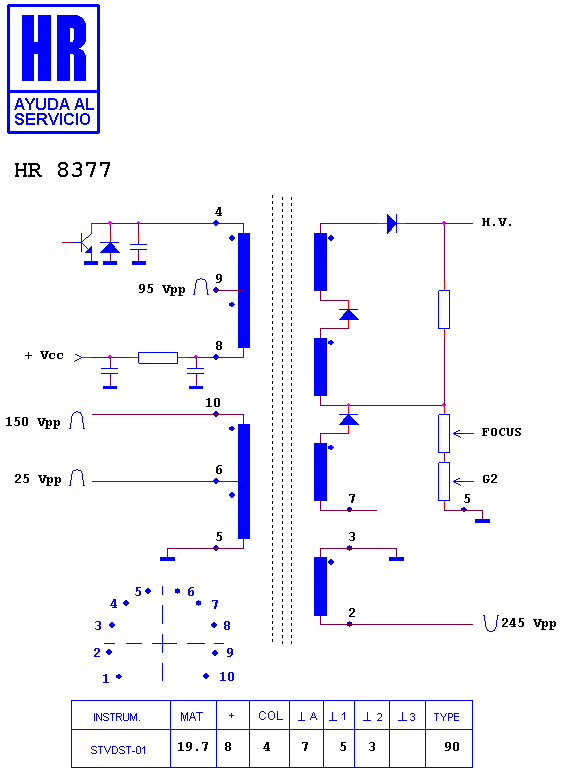

Schematic diagram for HR 8377
schematic

Manufacturer equivalents (5)

40332-10 47320067 · 473200.67 · AFS 277 · PET 19-E2B · TVL107

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7885 · HR 6327 · HR 7150 · HR 80060 · HR 7841 · HR 80049 · HR 7903 · HR 7738 · HR 7893 · HR 8538 · HR 8036 · HR 7912

Search this part in the full database
