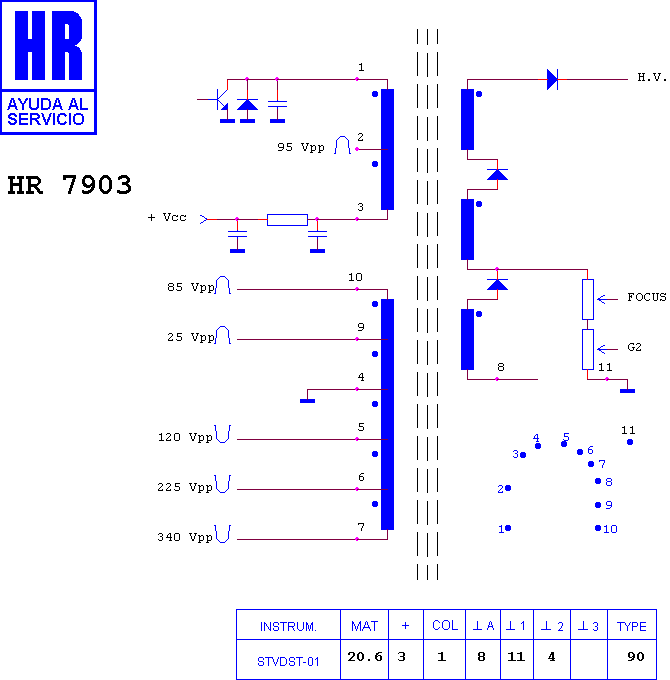

HR 7903

type ST · family 1XP1 · 20.6 kV maximum anode voltage · 90° deflection · 3 windings · 260 g

Manufacturer equivalents (1)

154 106 F

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8435 · HR 6327 · HR 6383 · HR 6350 · HR 7132 · HR 7552 · HR 8329 · HR 7525 · HR 80049 · HR 8934 · HR 7562 · HR 8538

Fitted to (5)

LG - GOLDSTAR CF 21 A 50 F · LG - GOLDSTAR CF 21 C 28 F · LG - GOLDSTAR CF 21 C 28 L · LG - GOLDSTAR CF 21 C 28 T · LG - GOLDSTAR CHASIS PC 58 B

Search this part in the full database
