HR 8435

type ST · family 1YP · 25.9 kV maximum anode voltage · 90° deflection · 3 windings · 410 g

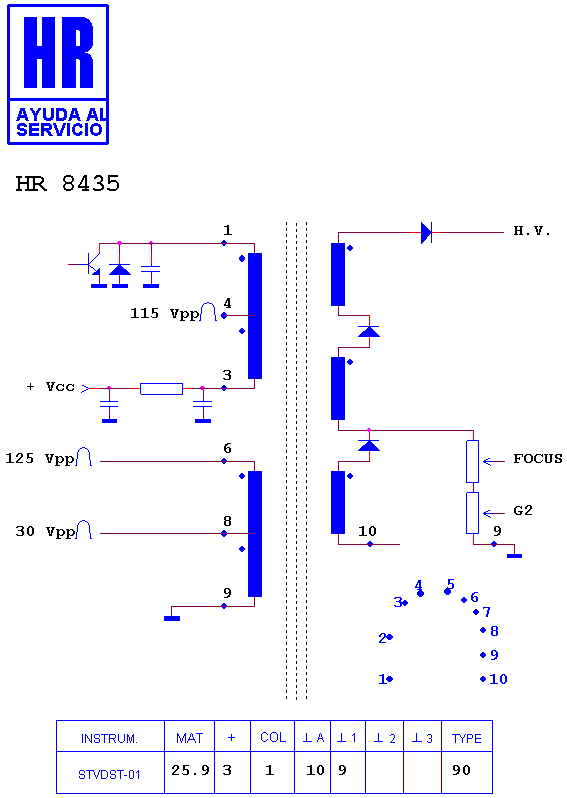

Schematic diagram for HR 8435
schematic

Manufacturer equivalents (2)

04090002078 · KT 9019

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8432 · HR 7903 · HR 8329 · HR 7552 · HR 8934 · HR 6138 · HR 7166 · HR 7024 · HR 7525 · HR 8169 · HR 6350 · HR 7132

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
