HR 7024

21.3 kV maximum anode voltage · 90° deflection · 4 windings · 278 g

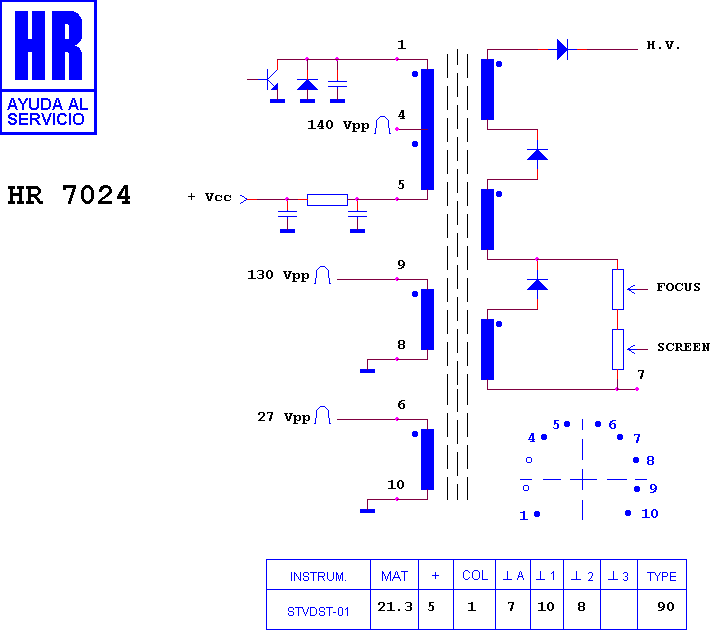

Schematic diagram for HR 7024
schematic
Schematic diagram for HR 7024
schematic (archived)

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7132 · HR 7150 · HR 7525 · HR 8169 · HR 8432 · HR 8435 · HR 7903 · HR 6138 · HR 6327 · HR 8036

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
