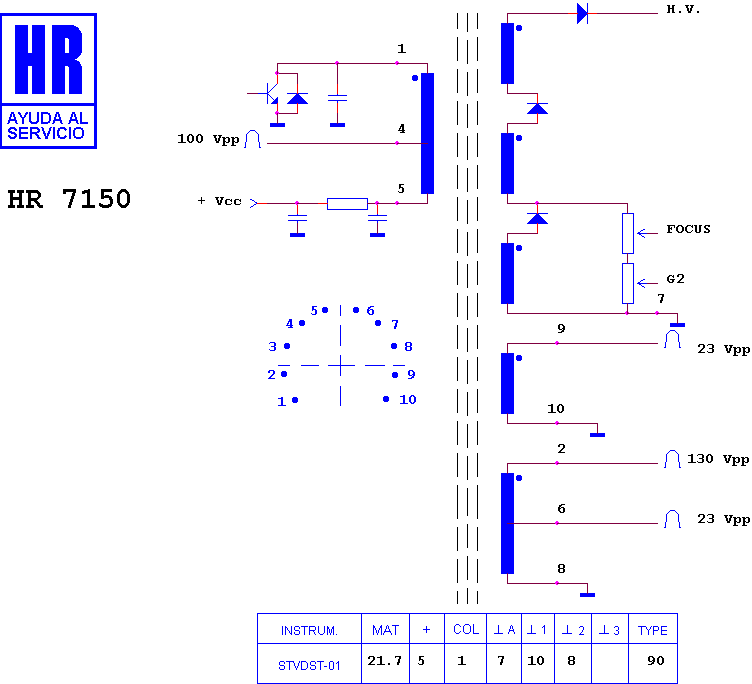

HR 7150

type ST · family 1NP1 · 21.7 kV maximum anode voltage · 90° deflection · 3 windings · 278 g

Manufacturer equivalents (1)

FBT 412

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7132 · HR 7166 · HR 7024 · HR 7552 · HR 8934 · HR 6350 · HR 7525 · HR 8538 · HR 6327 · HR 8036 · HR 8377 · HR 7885

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.
