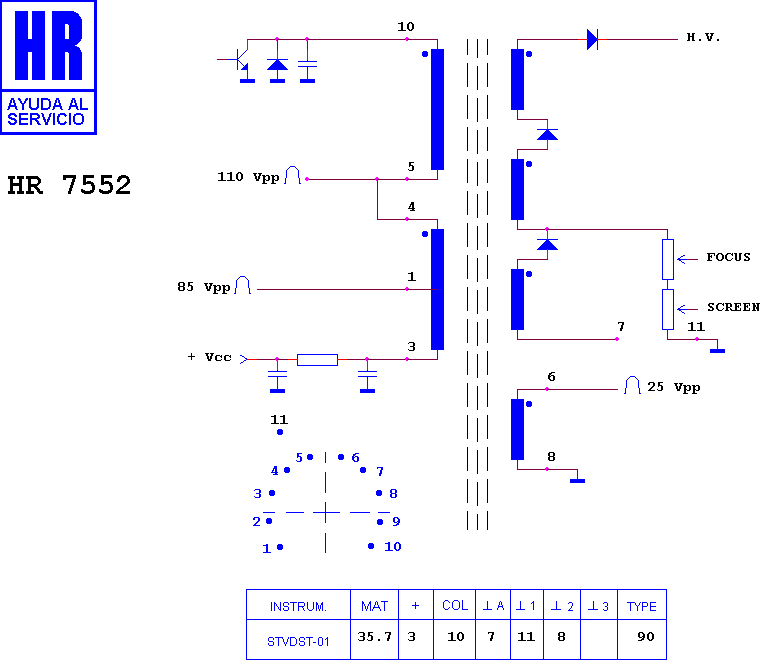

HR 7552

type ST · family 1NP · 35.7 kV maximum anode voltage · 90° deflection · 4 windings · 259 g

Manufacturer equivalents (1)

HR 7552-00

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8036 · HR 7562 · HR 8329 · HR 8169 · HR 8435 · HR 7150 · HR 6138 · HR 8432 · HR 7867 · HR 7164 · HR 7419 · HR 7525

Fitted to (1)

META CHASIS META 14"-21"
