HR 7867

type ST · family 1XP1 · 19.6 kV maximum anode voltage · 90° deflection · 3 windings · 256 g

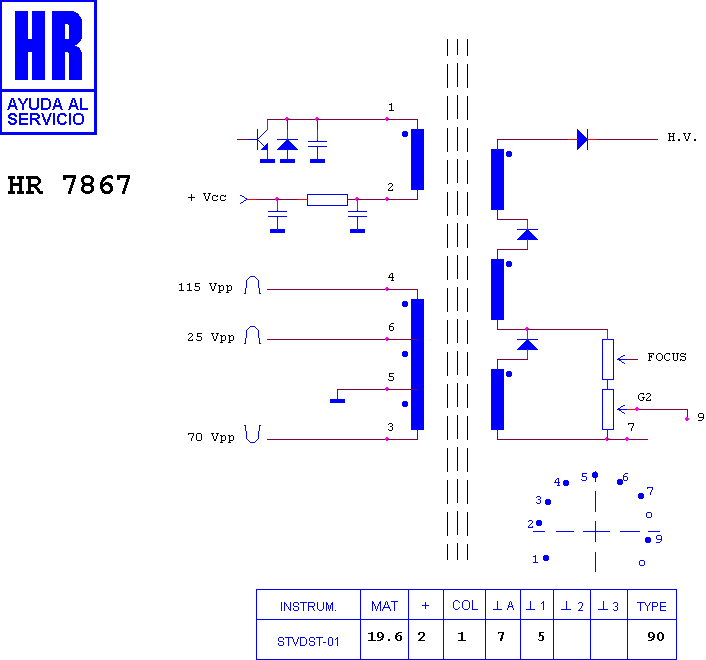

Schematic diagram for HR 7867
schematic

Manufacturer equivalents (7)

0102489 · 102489 · FAT30648 · FDA 014 · FDA 014 HC · FDA 0148 C · HR 7867

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7627 · HR 8467 · HR 8908 · HR 8925 · HR 8169 · HR 8907 · HR 7419 · HR 8538 · HR 7869 · HR 80049 · HR 6350 · HR 7893

Notes

THIS HR TRANSFORMER HAS THE PIN GROUND OF FOCUS AND SCREEN POTENTIOMETERS CONNECTED INTERNALLY.

Fitted to (3)

SCHNEIDER STV 3685 · SCHNEIDER STV 5185 · SCHNEIDER STV 5585
