HR 6586

type ST · family 1GP · 20.7 kV maximum anode voltage · 90° deflection · 3 windings · 430 g

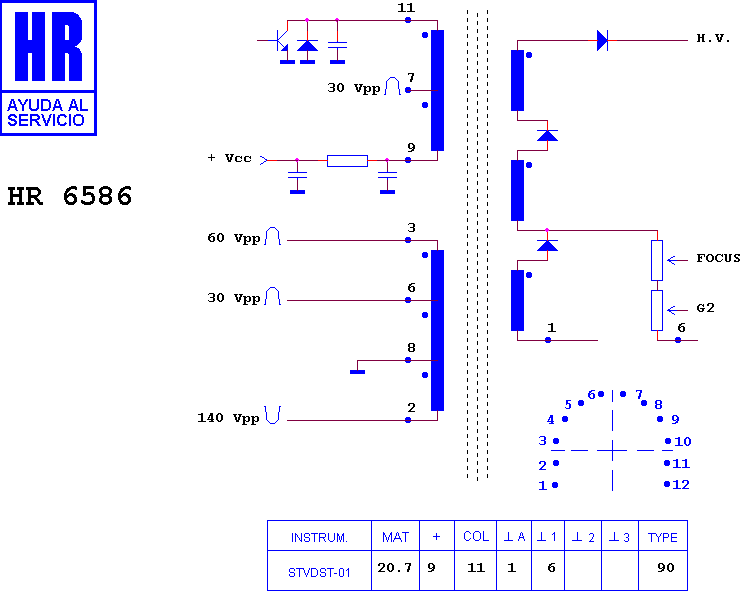

Schematic diagram for HR 6586
schematic

Manufacturer equivalents (14)

003162208 · 29201.031.62 · 29201.031.62 A · 29201.031.6200 · 29201.031.62B · 29221.031.62 · 29221.031.62 A · 292210316200 · 546620250K · 8 669 485 087 · FAT30728 · HR 6586 · RO747 · TR747

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8908 · HR 6454 · HR 7893 · HR 7527 · HR 80049 · HR 8202 · HR 8907 · HR 7869 · HR 7867

Fitted to (5)

GRUNDIG 737 · GRUNDIG CHASIS CUC 7350 · GRUNDIG GREENVILLE SP · GRUNDIG SP 737 · GRUNDIG SUPER COLOR SP
