HR 8907

17.8 kV maximum anode voltage · 90° deflection · 3 windings · 256 g

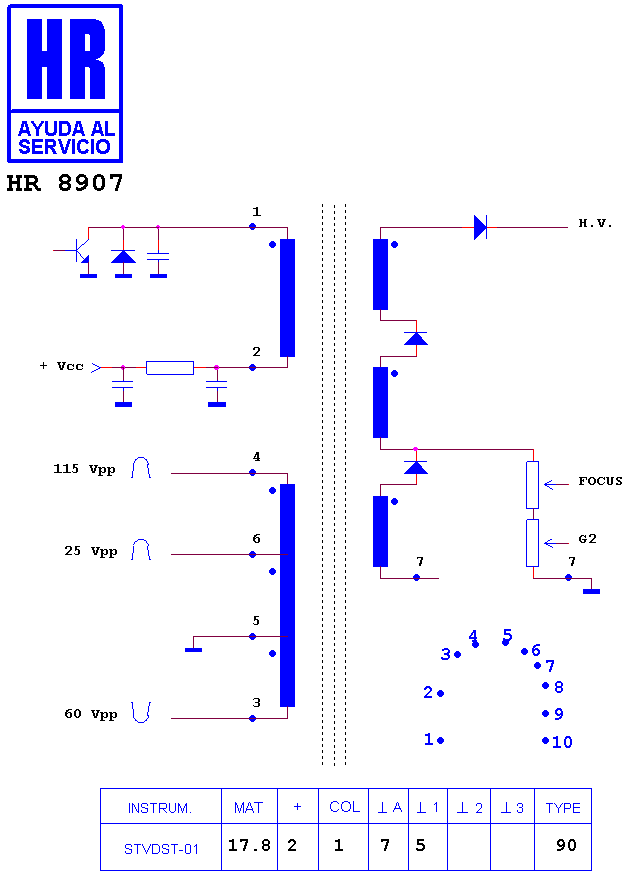

Schematic diagram for HR 8907
schematic (archived)

Manufacturer equivalents (1)

BSC24-4802

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7627 · HR 8908 · HR 7419 · HR 7869 · HR 7867 · HR 8467 · HR 8925 · HR 7893 · HR 80049 · HR 6586 · HR 6350 · HR 7527

Fitted to (7)

A I A 3 20 · A I ATS 37-1 BG · A I ATS 54 · HSN TC 1828 · SVA A 3 20 · TELEFUNKEN C 5118 · TELEFUNKEN C 5428
