HR 7627

type ST · family 1XP1 · 19.6 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

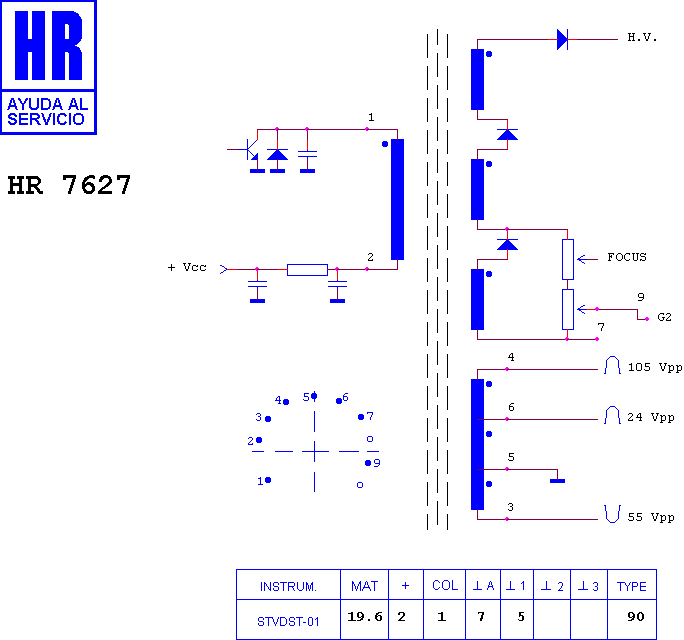

Schematic diagram for HR 7627
schematic

Manufacturer equivalents (9)

003251007 · 610 213 3721 · AFS 364 · BSC24-3393 · FAT30742 · FD 0199 · FD 199 · RO 317 · TR 317

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8908 · HR 7867 · HR 8925 · HR 7419 · HR 8907 · HR 7869 · HR 7893 · HR 7527 · HR 6350 · HR 7552 · HR 8934 · HR 8036

Fitted to (7)

IES CMM 2133 VRA · NOKIA - ITT 5523 OS · SANYO CEM 2140 P · SANYO CMM 2133 VRA · SANYO CPP 2140 · SANYO CZD 2141 TX · SANYO CZP 2141 TX
