HR 8908

25.5 kV maximum anode voltage · 90° deflection · 3 windings · 256 g

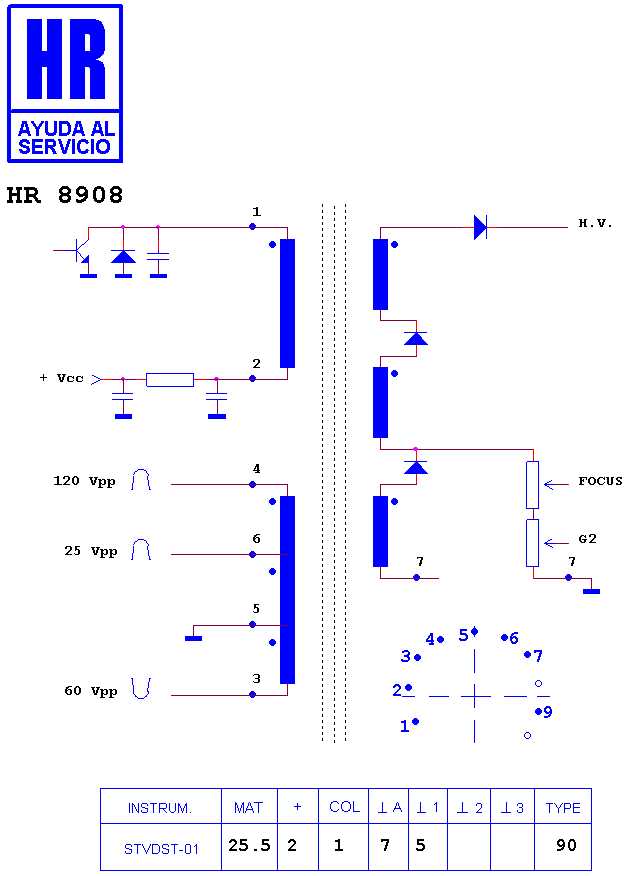

Schematic diagram for HR 8908
schematic (archived)

Manufacturer equivalents (7)

BSC23-4404A · BSC233302A · BSC24-01N4004L · BSC24-01N40D3 · BSC24-1503 · BSC25-02AW50 · BSC26-4005

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8467 · HR 8907 · HR 7627 · HR 7419 · HR 7869 · HR 7867 · HR 80049 · HR 7527 · HR 7893 · HR 6586 · HR 8036 · HR 6454

Fitted to (9)

HSN TC 1828 EA · RECOR 51 TC 5177 · RECOR 54 TTS 5172 · RECOR 54 TTS 5176 · ROADSTAR CTV 2052 KT · SHARP 21 ST 04 · TNM TO 2188 ST · TNM TO 4-2140 ST · XNT 54 TTS 5172
