HR 6327

type ST · family 1QS · 19.7 kV maximum anode voltage · 90° deflection · 4 windings · 330 g

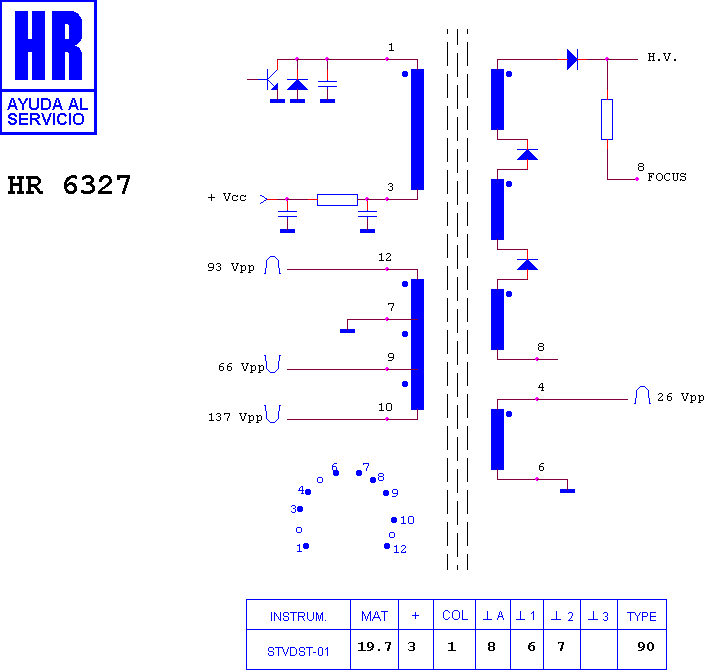

Schematic diagram for HR 6327
schematic

Manufacturer equivalents (1)

8 667 210 433

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7903 · HR 6350 · HR 7150 · HR 8377 · HR 8169 · HR 80049 · HR 7893 · HR 7024 · HR 7552 · HR 8934 · HR 7885 · HR 7525

Fitted to (4)

BLAUPUNKT 37-15/32 · BLAUPUNKT CD 37-15 · BLAUPUNKT CD 37-15/32 · BLAUPUNKT VHR CD 37-15/32
