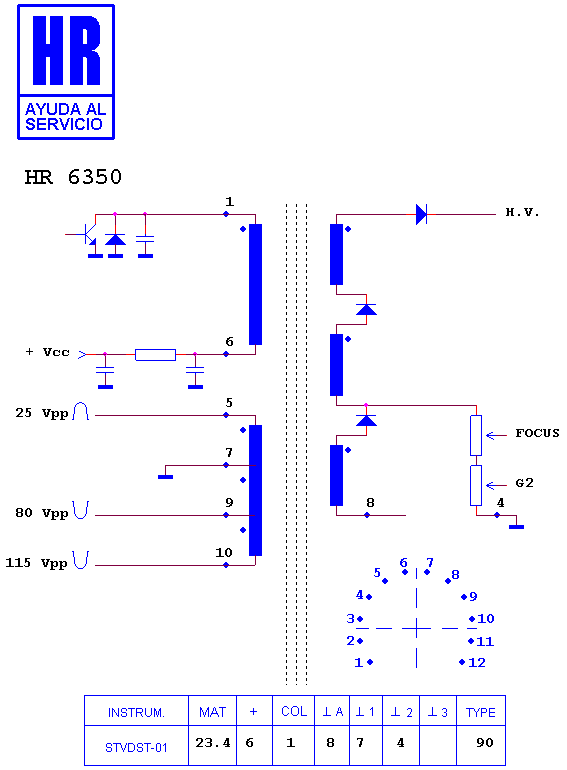

HR 6350

type ST · family 1BP1 · 23.4 kV maximum anode voltage · 90° deflection · 3 windings · 390 g

Manufacturer equivalents (1)

2433703

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 8467 · HR 8925 · HR 7525 · HR 8934 · HR 7903 · HR 7166 · HR 7562 · HR 80049 · HR 7552 · HR 6383 · HR 7256 · HR 8329

Search this part in the full database
