HR 8467

26.7 kV maximum anode voltage · 90° deflection · 3 windings · 290 g

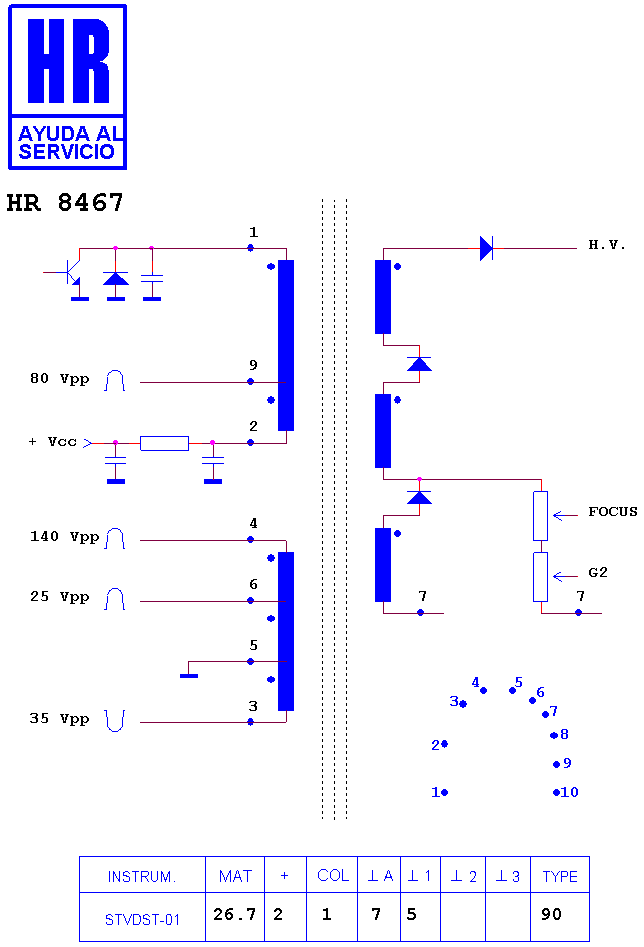

Schematic diagram for HR 8467
schematic (archived)

Manufacturer equivalents (1)

BSC25-02AW23

Possible substitutes

Parts of a similar design. A shortlist to check, not a recommendation.

HR 7869 · HR 7732 · HR 7867 · HR 8907 · HR 8908 · HR 80049 · HR 7527 · HR 7562 · HR 8295 · HR 7893 · HR 6350 · HR 8036

Fitted to (12)

AKR 14 RBS3 WN · AKR 14 TBS3 WN · AKR 21 BBS 3 VE · AKR 21 BBS 3 WN · AKR 21 HCS 3 VE · AKR 21 HCS 3 WN · AKR 21 RBS 3 VE · AKR 21 RBS 3 WN · AKR 21 VBS 3 VE · AKR 21 VBS 3 WN · AKR CHASIS 3 Y 01 · AKR CHASIS TB 1238
